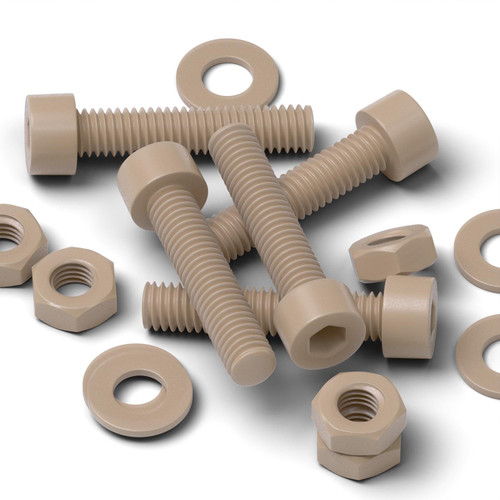

5x Bolts, 5x Nuts, 5x Washers. Material: PEEK. Type: Socket Head Bolts. Length: 20mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 3R-X7LS-7MJJ.
PEEK became a popular choice, due to its excellent mechanical, chemical, and thermal properties.
PEEK demonstrates excellent chemical resistance to most acids (including strong acids like sulfuric acid), bases, and organic solvents.
Replacement for machined metals in a wide variety of high performance end-use applications.
Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M4 x 20mm.
- Colour_Reference: Natural.
- Material_Reference: PEEK / Polyether ether Ketone.
- Type_Reference: Socket Head Bolts.
- Quantity_Reference: 5.
- Pitch_(mm): 0.7.
Dimensions (L x W x D mm):
20 x 4 x 4.Additional Specifications:
- Washer_Dimension: Stock Code: CR06357PEEK , Material: Polyether ether ketone , Material Reference: PEEK/HN , Head/Drive Type: Hexagon Nut , Overall Size: M4 , N (mm): M4 , HN B: 6.89 , HN H: 3.05 ,.
- Nut_Dimension: Stock Code: CR06357PEEK , Material: Polyether ether ketone , Material Reference: PEEK/HN , Head/Drive Type: Hexagon Nut , Overall Size: M4 , N (mm): M4 , HN B: 6.89 , HN H: 3.05 ,.
- Bolt_Dimension: Stock Code: CR01614PEEK , Material: Polyether ether ketone , Material Reference: PEEK/S0 , Head/Drive Type: Socket Hex Head Bolt , Overall Size: M4 x 20 , Metric Size: M4 , D: 4.0 , Pitch: 0.7 , L: 20 , HD: 7.0 , HH: 3.91 , HS: 3.05 ,.
