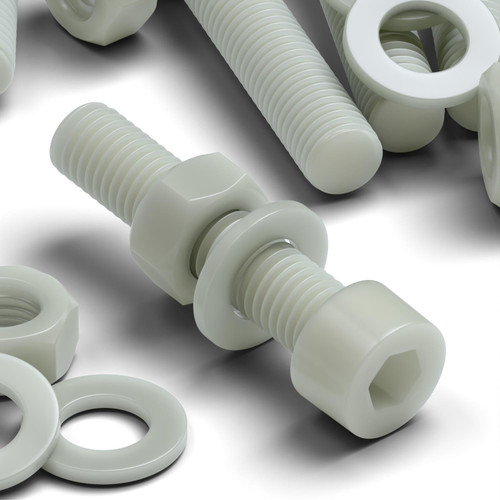

Comparable to RENY. 20x Bolts, 20x Washers, 20x Nuts.
Nylon+GF is a 50% glass fiber reinforced Super Nylon. Far stronger than the 30% version available.
The Glass-Reinforced nylon has outstanding property improvements over un-reinforced Nylon compositions.
Improvements include greater tensile strength, deflection temperature, shear strength, and lower moisture absorption.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M8 x 40mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon PA 66 / 50% Glass Fibre Reinforced.
- Type_Reference: Socket Head Bolts.
- Quantity_Reference: 20.
- Pitch_(mm): 1.25.
Dimensions (L x W x D mm):
40 x 8 x 8.Additional Specifications:
- Washer_Dimension: Stock Code: CR06528PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/W0 , Head/Drive Type: Flat Washer , Overall Size: M8 , W0 A: 15.78 , W0 B: 8.51 , W0 T: 1.6 ,.
- Nut_Dimension: Stock Code: CR06372PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/HN , Head/Drive Type: Hexagon Nut , Overall Size: M8 , N (mm): M8 , HN B: 12.87 , HN H: 6.62 ,.
- Bolt_Dimension: Stock Code: CR02326PA66+GF , Material: Polyamide+fiberglass , Material Reference: PA66+GF/S0 , Head/Drive Type: Socket Hex Head Bolt , Overall Size: M8 x 40 , Metric Size: M8 , D: 8 , Pitch: 1.25 , L: 40 , HD: 13.0 , HH: 7.82 , HS: 6.08 ,.
