Features:
- 10x Bolts, 10x Nuts, 10x Washers. Material: PVDF. Type: Socket Head Bolts. Length: 20mm. Diameter: 3mm. Pitch: 0.8mm. SKU: 521.
- Outstanding chemical and thermal resistance, as well as extraordinary piezoelectric and electro-mechanical properties.
- PVDF is mechanically stronger than PTFE or PFA polymer. PVDF will absorb little or no water after 24 hours of exposure
- It exhibits excellent mechanical strength, tensile strength, and abrasion resistance, balancing durability with flexibility. PVDF also has good resistance to wear and abrasions.
- Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.
Product Summary:
PVDF has the rare ferroelectric property of retaining its polarisation when the electric field is removed. PVDF is widely used in applications where high chemical resistance, thermal stability and piezoelectric properties are required. It has excellent resistance to acids, bases, solvents, ultraviolet (UV) and gamma radiation. PVDF offers remarkable fire resistance, high chemical resistance and exceptional mechanical strength. It performs well in tension, bending, torsion and compression, while maintaining elasticity, surface hardness & dimensional stability. Notably, PVDF absorbs little to no water after 24 hours of exposure and will not change in a wet environment.
| Core Technical Details | |
|---|---|
| Product Type | Socket Head Bolts |
| Size (mm) | M3 x 20mm |

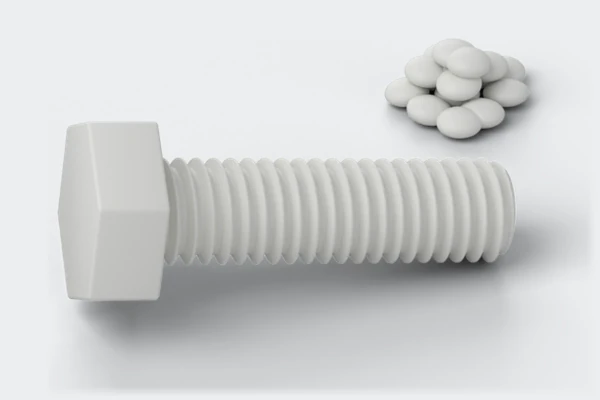

| Material | PVDF / Polyvinylidene-fluoride |
| Colour | Natural |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 3.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 3 mm (W) |
| Thickness / Depth -mm | 3 mm (D) |
| Pitch - mm | 0.8 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.118 |
| Thickness / Depth -inches | 0.118 |
| Pitch - inches | 0.031 |
| Product Download Sheets | |
| Product Data Sheet | PVDF Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Socket-Head.png |
| Bolt Dimensions | Stock Code: CR01749PVDF Socket Hex Head Bolt size: M5 x 20 D: 5 mm Pitch: 0.8 mm L: 20 mm HD: 8.5 mm HH: 4.91 mm HS: 4.06 mm |
| Nut Dimensions | Stock Code: CR06388PVDF Material: Polyvinylidene fluoride Material Reference: PVDF/HN Head/Drive Type: Hexagon Nut size: M3 N (mm): M3 HN B: 5.41 mm HN H: 2.28 mm |
| Washer Dimensions | Stock Code: CR06508PVDF Material: Polyvinylidene fluoride Material Reference: PVDF/W0 Head/Drive Type: Flat Washer size: M3 W0 A: 6.82 mm W0 B: 3.29 mm W0 T: 0.5 mm |
| Width -mm | 3 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 3 mm (D) |
| Diameter -mm | 3.00 |
