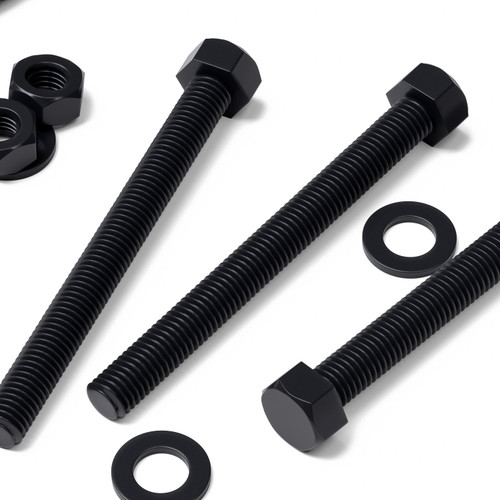

10x Black PP Hex Head Plastic Screws & Bolts M10 x 100 mm, Nuts & Washers

(No reviews yet) Write a Review

SKU: 675

Sale £16.66
£14.99

Price excludes VAT

Adding to basket... The item has been added

Features:

  • 10x Bolts, 10x Nuts, 10x Washers. Pantone 3C Black. Material: PP. Type: Hex Head Bolts. Length: 100mm. Diameter: 10mm. Pitch: 1.5mm. Across flats: 16mm. Head height: 6.4mm. SKU: 675.
  • Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
  • Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
  • These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
  • The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.

Product Summary:

Pack of 10 black polypropylene hex head bolts, M10 x 100 mm, with 10 nuts and 10 washers. Thread pitch: 1.5 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.

Core Technical Details
Product Type Hex Head Bolts
Size (mm) M10 x 100mm
Material PP / Polypropylene
Colour Black
Quantity 10
Dimensions - mm
Diameter -mm 10.00
Length - mm 100 mm (L)
Width -mm 10 mm (W)
Thickness / Depth -mm 10 mm (D)
Pitch - mm 1.5
Dimensions - Inches Conversion
Length -inches 3.937
Width -inches 0.394
Thickness / Depth -inches 0.394
Pitch - inches 0.0591
Product Download Sheets
Safety Data Sheet Conformity Safety
Material Data Sheet Polypropylene (PP) — Material Datasheet
Product Data Sheet Polypropylene (PP) — Screws & Bolts Datasheet
Type
Technical Drawing https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png
Bolt Dimensions Head/Drive Type: Hexagon Head Bolt, size: M10 x 100, D: 10 mm, Pitch: 1.5 mm, L: 100 mm, HD: 15.79 mm, HH: 6.4 mm
Nut Dimensions Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M10, N (mm): M10, HN B: 15.87 mm, HN H: 8.22 mm
Washer Dimensions Material: Polypropylene, Head/Drive Type: Flat washer, size: M10, W0 A: 19.74 mm, W0 B: 10.64 mm, W0 T: 2 mm
Width -mm 10 mm (W)
Length - mm 100 mm (L)
Thickness / Depth -mm 10 mm (D)
Diameter -mm 10.00
