Features:

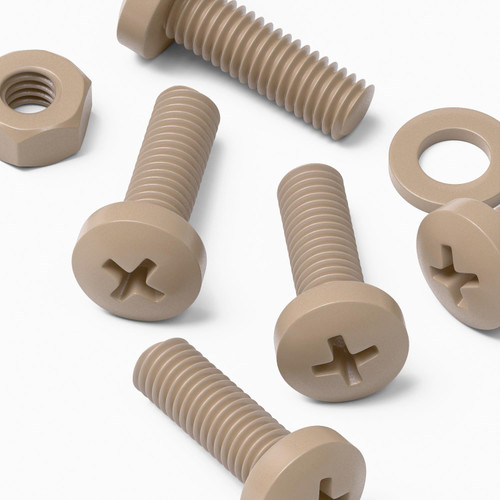

- 5x Bolts, 5x Nuts, 5x Washers. Material: PEEK. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 6mm. Pitch: 1mm. SKU: 307.
- PEEK demonstrates excellent chemical resistance to most acids (including strong acids like sulfuric acid), bases, and organic solvents.
- PEEK also has stable electrical insulating properties, even in high-heat environments.
- PEEK became a popular choice for the aerospace, automotive, and industrial sectors due to its excellent mechanical, chemical, and thermal properties.
- Cross drive design for screwdriver installation and wide underside for even load distribution.
Product Summary:
Highly resistant to harsh chemicals, steam, water and seawater with excellent hydrolysis resistance. This engineering thermoplastic exhibits superior mechanical strength, dimensional stability and exceptional flexural, impact and tensile properties. It also has anti-corrosion properties and high dielectric strength at elevated temperatures. PEEK can be used in hot water or steam environments while maintaining its physical properties. Unique as a high performance semi-crystalline plastic, it offers unrivalled resistance to chemical attack and radiation, even at extreme temperatures.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M6 x 20mm |
| Material | PEEK / Polyether ether ketone |
| Colour | Natural |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Material Data Sheet | PEEK TDS 450G |
| Product Data Sheet | PEEK Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03120PEEK Head/Drive Type: Cross Pan Head Bolt size: M6 x 20 D: 6.0 mm Pitch: 1.0 mm L: 20 mm HD: 11.79 mm HH: 4.45 mm |
| Nut Dimensions | Stock Code: CR06359PEEK Material: Polyether ether ketone Material Reference: PEEK/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06359PEEK Material: Polyether ether ketone Material Reference: PEEK/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
