Features:

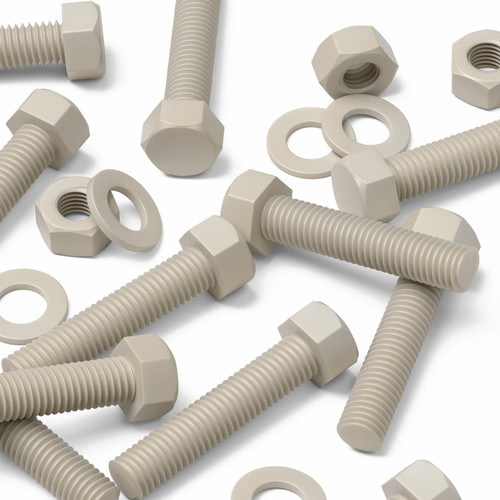

- 5x Bolts, 5x Nuts, 5x Washers. Material: PPS. Type: Hex Head Bolts. Length: 40mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 756.
- The polymer known today as “the polymer that doesn’t melt”.
- It has exceptional dimensional stability even under prolonged mechanical load and displays a very low coefficient of thermal expansion.
- This PPS is 40% Glass reinforced - the strongest and toughest product available.
- Repeated removal and refitting with excellent resistance to stripping in high torque demanding applications.
Product Summary:
PPS (polyphenylene sulphide) can withstand extreme conditions. It has exceptional thermal properties, high tensile strength, stiffness and improved toughness, particularly in our glass fibre grades. Prolonged mechanical stress and a very low coefficient of thermal expansion ensures reliable performance. Its chemical resistance is equally impressive. PPS fasteners are well suited to applications normally reserved for PEEK. With its high hardness and stiffness at elevated temperatures, PPS ensures excellent load-bearing performance.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M8 x 40mm |
| Material | PPS / Polyphenylene Sulfide |
| Colour | Natural |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Product Data Sheet | PPS — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR00640PPS Material: Polyphenylene sulphide Material Reference: PPS/J0 Head/Drive Type: Hexagon Head Bolt size: M8 x 40 D: 8 mm Pitch: 1.25 mm L: 40 mm HD: 12.79 mm |
| Nut Dimensions | Stock Code: CR06469PPS Material: Polyphenylene sulphide Material Reference: PPS/HN Head/Drive Type: Hexagon Nut size: M8 N (mm): M8 HN B: 12.87 mm HN H: 6.62 mm |
| Washer Dimensions | Stock Code: CR06578PPS Material: Polyphenylene sulphide Material Reference: PPS/W0 Head/Drive Type: Flat washer size: M8 W0 A: 15.79 mm W0 B: 8.51 mm W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
