Features:

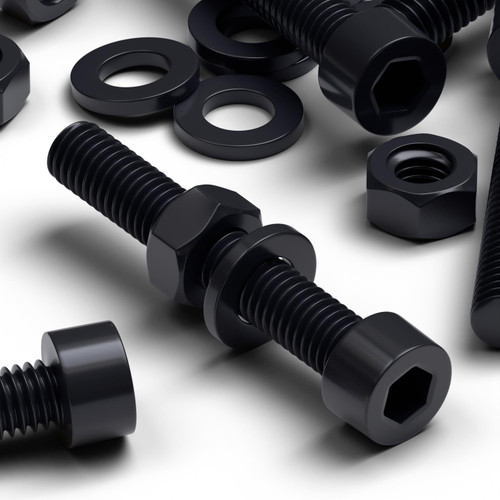

- 50x Bolts, 50x Nuts, 50x Washers. Pantone 3C Black. Material: PA 66 / Nylon. Type: Socket Head Bolts. Length: 40mm. Diameter: 6mm. Pitch: 1mm. SKU: 516.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases.
- Hex key fastening allows for higher torque and secure fastening under load.
Product Summary:
Nylon has a very low coefficient of friction, making it popular for applications where wear resistance is required, such as fasteners and cable ties. It is one of the most widely used plastics in the world, with all grades retaining high strength and offering exceptional wear resistance. It has corrosion, chemical and electrical resistance. Tough and lightweight, Nylon Hex Bolt fasteners offer excellent electrical insulation properties and are non-corrosive and non-magnetic. An alternative 50% glass filled nylon version is also available.
| Core Technical Details | |
|---|---|
| Product Type | Socket Head Bolts |
| Size (mm) | M6 x 40mm |
| Material | Nylon / Polyamide 66 |
| Colour | Black |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Material Data Sheet | Nylon Datasheet |
| Product Data Sheet | Nylon PA66 Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Socket-Head.png |
| Bolt Dimensions | Stock Code: CR01931PA66 Socket Hex Head Bolt size: M6 x 40 D: 6 mm Pitch: 1.0 mm L: 40 mm HD: 10.0 mm HH: 5.85 mm HS: 5.08 mm |
| Nut Dimensions | Stock Code: CR06438 PA66 Material: Polyamide66 Material Reference: PA66/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06625PA66 Material: Polyamide66 Material Reference: PA66/W0 Head/Drive Type: Flat washer size: M6 W0 A: 11.78 mm W0 B: 6.51 mm W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
