Features:

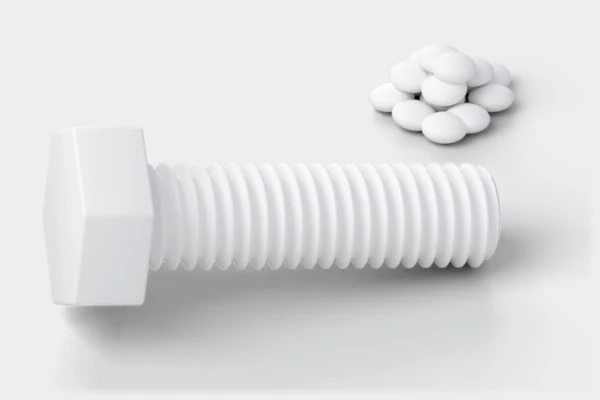

- 10x Bolts, 10x Nuts, 10x Washers. Material: PTFE. Type: Hex Head Bolts. Length: 40mm. Diameter: 6mm. Pitch: 1mm. SKU: 761.
- PTFE owes its properties to the strength of carbon-fluorine (C–F) bonds and the unique attributes of fluorine.
- PTFE combines excellent mechanical strength, flexibility even at cryogenic temperatures, and a low friction, non-adhesive surface.
- PTFE is chemically inert, resisting attack from acids, alkalis, fuels, and organic solvents. It has exceptional thermal insulation properties.
- Sits above the surface for access for fitting and removal. Robust torque transfer for the most demanding fastening applications.
Product Summary:
PTFE provides excellent electrical insulation, characterised by high dielectric strength and low dielectric constant. PTFE is a high performance thermoplastic with remarkable chemical resistance and a wide temperature range from -400°F to 500°F (-73°C to 204°C). It repels both water and oils, and has a low coefficient of friction, making it suitable for non-stick and lubrication applications. PTFE is durable, flexible and has average tensile strength but exceptional resistance to chemicals, heat and electrical discharge.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M6 x 40mm |
| Material | PTFE / Polytetrafluoroethylene |
| Colour | Natural |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Product Data Sheet | PTFE Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR00290PTFE Head/Drive Type: Hexagon Head Bolt size: M6 x 20 D: 6 mm Pitch: 1.0 mm L: 20 mm HD: 9.82 mm HH: 4.0 mm |
| Nut Dimensions | Stock Code: CR06421PTFE Material: polytetrafluoroethylene Material Reference: PTFE/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06557PTFE Material: polytetrafluoroethylene Material Reference: PTFE/W0 Head/Drive Type: Flat washer size: M6 W0 A: 11.78 mm W0 B: 6.51 mm W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
