Features:

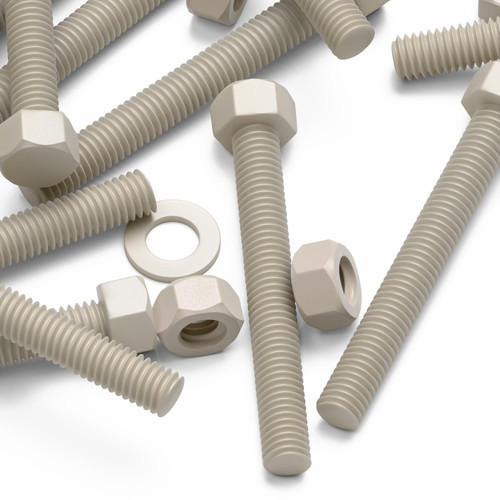

- 10x Bolts, 10x Nuts, 10x Washers. Material: PPS. Type: Hex Head Bolts. Length: 40mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 752.
- The polymer known today as “the polymer that doesn’t melt”.
- It has exceptional dimensional stability even under prolonged mechanical load and displays a very low coefficient of thermal expansion.
- It has good resistance to weather conditions, including varying temperatures, oxidation, and moisture.
- Repeated removal and refitting with excellent resistance to stripping in high torque demanding applications.
Product Summary:
PPS (polyphenylene sulphide) can withstand extreme conditions. It has exceptional thermal properties, high tensile strength, stiffness and improved toughness, particularly in our glass fibre grades. Prolonged mechanical stress and a very low coefficient of thermal expansion ensures reliable performance. Its chemical resistance is equally impressive. PPS fasteners are well suited to applications normally reserved for PEEK. With its high hardness and stiffness at elevated temperatures, PPS ensures excellent load-bearing performance.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M5 x 40mm |
| Material | PPS / Polyphenylene Sulfide |
| Colour | Natural |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 5.00 |
| Length - mm | 40 mm (L) |
| Width -mm | 5 mm (W) |
| Thickness / Depth -mm | 5 mm (D) |
| Pitch - mm | 0.8 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.575 |
| Width -inches | 0.197 |
| Thickness / Depth -inches | 0.197 |
| Pitch - inches | 0.031 |
| Product Download Sheets | |
| Product Data Sheet | PPS Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR00618PPS Head/Drive Type: Hexagon Head Bolt size: M5 x 40 D: 5 mm Pitch: 0.8 mm L: 40 mm HD: 7.82 mm HH: 3.5 mm |
| Nut Dimensions | Stock Code: CR06467PPS Material: Polyphenylene sulphide Material Reference: PPS/HN Head/Drive Type: Hexagon Nut size: M5 N (mm): M5 HN B: 7.89 mm HN H: 4.55 mm |
| Washer Dimensions | Stock Code: CR06576PPS Material: Polyphenylene sulphide Material Reference: PPS/W0 Head/Drive Type: Flat washer size: M5 W0 A: 9.82 mm W0 B: 5.39 mm W0 T: 1.0 mm |
| Width -mm | 5 mm (W) |
| Length - mm | 40 mm (L) |
| Thickness / Depth -mm | 5 mm (D) |
| Diameter -mm | 5.00 |
