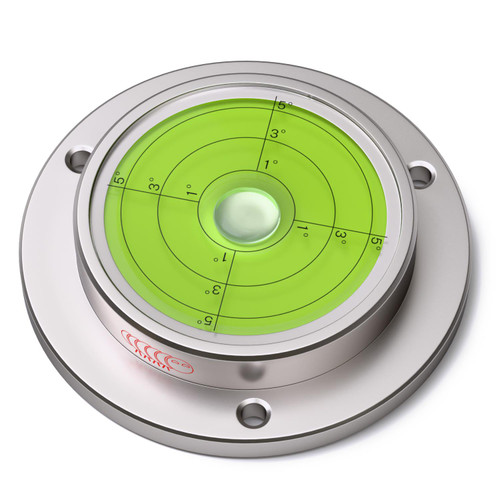

Features:
- Material: Aluminium. Type: Flanged Spirit Level. Outer Diameter (OD): 100mm. Inner Diameter (ID): 75mm. Depth (D): 20mm. Hole Size (HS): 5mm. SKU: 99-C49W-P9VS.
- Sensitivity: 30' / 2mm. Offers speed and efficiency. A 30' sensitivity detects slopes of 8.73 mm/m, ideal for tasks where precision is secondary to speed.
- A level that features a base flange for secure mounting onto various surfaces. The design ensures accurate levelling by providing a stable reference point, minimising movement during measurements.
- Flanged bubble levels are used for secure mounting and precise alignment in tools such as tripods, industrial machines, workbenches, camera mounts and lab instruments.
- The black measuring grid radius marks, make for easy reading, and it is perfect for levelling large surface areas. Framed in metal housing with glass plate.
Product Summary:
Flanged bubble levels, with a secure rim for mounting, ensure precise alignment for tools, machinery, and equipment. Bubble levels use a liquid-filled vial and a central bubble to indicate alignment, vital for construction, surveying, and lab work. Durable, easy to install, and versatile, they’re key for stable and accurate measurements in diverse applications.
| Core Technical Details | |
|---|---|
| Product Type | Flanged Spirit Level |
| Material | Aluminium |
| Colour | Green |
| Quantity | 1 |
| Dimensions - mm | |
| Diameter -mm | 100 mm (W) |
| Length - mm | 100 mm (L) |
| Thickness / Depth -mm | 20 mm (D) |
| Dimensions - Inches Conversion | |
| Length -inches | 3.937 |
| Width -inches | 3.937 |
| Thickness / Depth -inches | 0.787 |
| Product Download Sheets | |
| Material Data Sheet | Flanged Levels — Material Sheet |
| Product Data Sheet | Flanged Levels — Product Sheet |
| Safety Data Sheet | Conformity Safety |

            | Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Acrylic-Aluminium-Metal-Flanged-Spirit-Bubble-Levels-Green.png |
| Level Dimensions | Material: Aluminium Type: Flanged Spirit Level Outer Diameter (OD): 100 mm Inner Diameter (ID): 75 mm Depth (D): 20 mm Hole Size (HS): 4 mm SKU: 99-C49W-P9VS. |
| Length - mm | 100 mm (L) |
| Thickness / Depth -mm | 20 mm (D) |
| Diameter -mm | 100 mm (W) |
