Features:

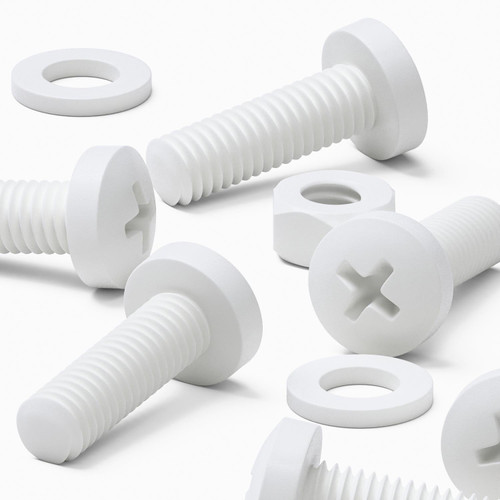

- 50x Bolts, 50x Nuts, 50x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 6mm. Pitch: 1mm. SKU: 2G-XREN-M2RV.
- Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Secure and sturdy tightening with crosshead screwdriver.
Product Summary:
Polypropylene is water-resistant, anti-corrosion, and chemical-resistant, offering excellent electrical insulation. It does not absorb or emit moisture and holds its shape well after repeated torsion, thanks to its good fatigue resistance and ability to avoid stress-cracking. The material is lightweight, strong, and nonconductive, with a slippery surface that reduces wear but also results in a relatively high coefficient of friction. Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M6 x 20mm |
| Material | PP / Polypropylene |
| Colour | White |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Material Data Sheet | PP Datasheet |
| Product Data Sheet | PP Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03597PA66 Head/Drive Type: Cross Pan Head Bolt size: M6 x 20 D: 6 mm Pitch: 1.0 mm L: 20 mm HD: 11.79 mm HH: 4.45 mm |
| Nut Dimensions | Stock Code: CR06406PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06608PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M6 W0 A: 11.78 mm W0 B: 6.51 mm W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
