Features:

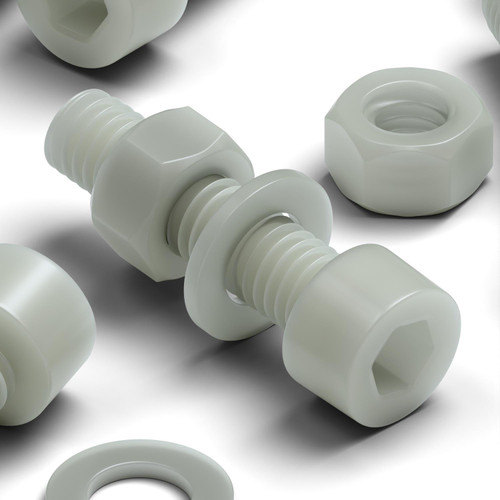

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Socket Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 814.
- The addition of 50% glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
- The composite also possesses superior hardness, surface durability, and wear resistance compared to PA66.
- Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.
Product Summary:
While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF (Glass Fibres) is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.
Socket Hex Head Bolt
size: M5 x 20
D: 5 mm
Pitch: 0.8 mm
L: 20 mm
HD: 8.5 mm
HH: 4.91 mm
HS: 4.06 mm
Material: Polyamide+fiberglass
Material Reference: PA+GF/HN
Head/Drive Type: Hexagon Nut
size: M5
N (mm): M5
HN B: 7.89 mm
HN H: 4.55 mm
Material: Polyamide+fiberglass
Material Reference: PA+GF/W0
Head/Drive Type: Flat Washer
size: M5
W0 A: 9.82 mm
W0 B: 5.39 mm
W0 T: 1.0 mm
