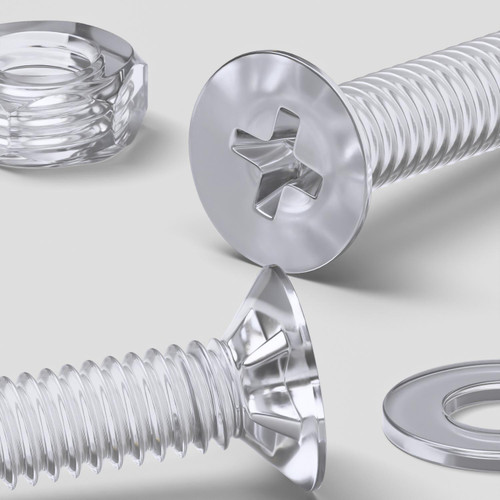

Clear Acrylic Countersunk Nuts & Bolts
Plastic
Transparent Acrylic Material
50 x nuts, 50 x bolts
M4 x 20mm
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M4 x 20mm.
- Colour_Reference: Clear.
- Material_Reference: Acrylic / Polycarbonate.
- Type_Reference: Countersunk Cross Head Bolts.
- Quantity_Reference: 50.
- Pitch_(mm): 0.7.
Dimensions (L x W x D mm):
20 x 4 x 4.Additional Specifications:
- Washer_Dimension: Stock Code: CR06591PC , Material: Polycarbonate , Material Reference: PC/W0 , Head/Drive Type: Flat washer , Overall Size: M4 , W0 A: 8.82 , W0 B: 4.39 , W0 T: 0.8 ,.
- Nut_Dimension: Stock Code: CR06482PC , Material: Polycarbonate , Material Reference: PC/HN , Head/Drive Type: Hexagon Nut , Overall Size: M4 , N (mm): M4 , HN B: 6.89 , HN H: 3.05 ,.
- Bolt_Dimension: Stock Code: CR04742PC , Material: Polycarbonate , Material Reference: PC/I0 , Head/Drive Type: Cross Countersunk Head Bolt , Overall Size: M4 x 20 , Metric Size: M4 , D: 4 , Pitch: 0.7 , L: 20 , HD: 8.22 , HH: 2.7 ,.
