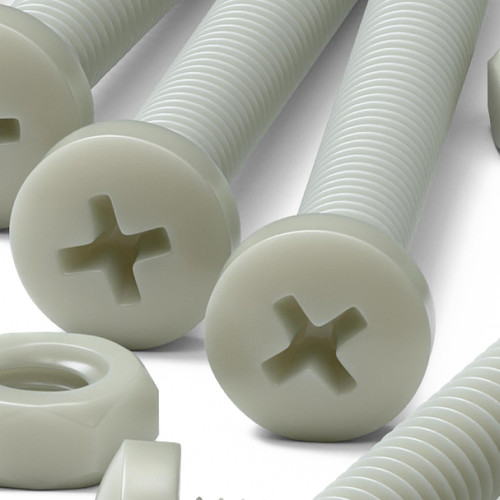

50x Glass Filled, Pan Head, M4 x 40mm, Plastic Nuts, Bolts & Washers, Super Nylon Screws

(7 reviews) Write a Review

SKU: 501

Sale £21.66
£19.49

Price excludes VAT

Adding to basket... The item has been added

Features:

  • 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Pan Cross Head Bolts. Length: 40mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 501.
  • Our 50% glass fibre (GF) filled material has superior tensile, flexural and impact strength, enabling it to be used in load bearing applications.
  • Glass fiber reinforcement was introduced to PA66 to improve its mechanical properties and thermal stability, enabling its use in demanding applications.
  • The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
  • Cross drive design for screwdriver installation and wide underside for even load distribution.

Product Summary:

While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.

Colour:
Natural
Diameter -mm:
4.00
Length - mm:
40 mm (L)
Length -inches:
1.575
Material:
Nylon PA 66 / 50% Glass Fibre Reinforced
Material Data Sheet:
Nylon GF50 Datasheet
Pitch - inches:
0.028
Pitch - mm:
0.7
Product Data Sheet:
Nylon PA66 50% GF Screws & Bolts Datasheet
Product Type:
Pan Cross Head Bolts
Quantity:
50
Safety Data Sheet:
Conformity Safety
Size (mm):
M4 x 40mm
Thickness / Depth -inches:
0.157
Thickness / Depth -mm:
4 mm (D)
Width -inches:
0.157
Width -mm:
4 mm (W)
Bolt Dimensions:
Stock Code: CR03013PA+GF
Head/Drive Type: Cross Pan Head Bolt
size: M4 x 40
D: 4 mm
Pitch: 0.7 mm
L: 40 mm
HD: 7.82 mm
HH: 3.01 mm
Nut Dimensions:
Stock Code: CR06369PA+GF
Material: Polyamide+fiberglass
Material Reference: PA+GF/HN
Head/Drive Type: Hexagon Nut
size: M4
N (mm): M4
HN B: 6.89 mm
HN H: 3.05 mm
Washer Dimensions:
Stock Code: CR06525PA+GF
Material: Polyamide+fiberglass
Material Reference: PA+GF/W0
Head/Drive Type: Flat Washer
size: M4
W0 A: 8.82 mm
W0 B: 4.39 mm
W0 T: 0.8 mm
