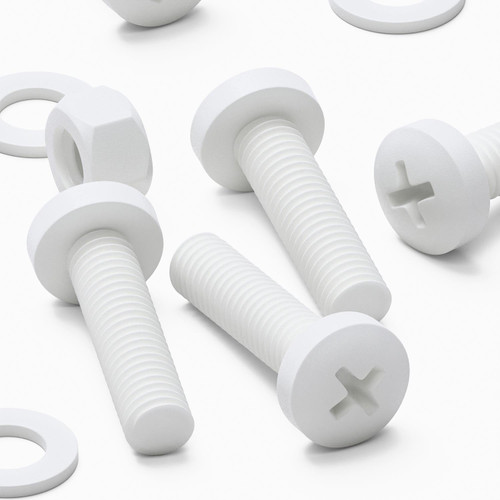

20x Bolts, 20x Nuts, 20x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 206.

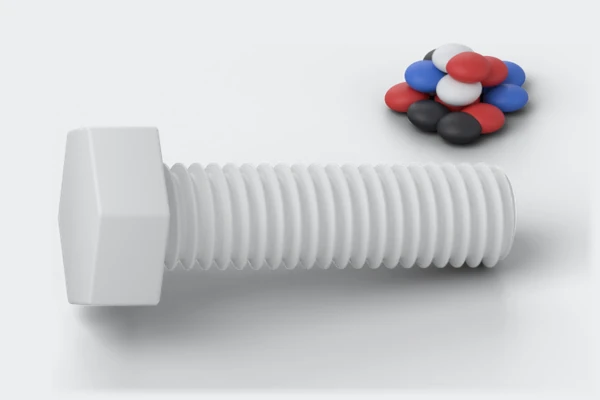

Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
Polypropylene has a high strength-to-weight ratio, is inherently flexible, and is moderately resistant to impact.
Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
Cross drive design for screwdriver fitting and a broad underside for even load distribution.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M5 x 20mm.
- Colour_Reference: White.
- Material_Reference: PP / Polypropylene.
- Type_Reference: Pan Cross Head Bolts.
- Quantity_Reference: 20.
- Pitch_(mm): 0.8.
Dimensions (L x W x D mm):
20 x 5 x 5.Additional Specifications:
- Washer_Dimension: Stock Code: CR06607PP , Material: Polypropylene , Material Reference: PP/W0 , Head/Drive Type: Flat washer , Overall Size: M5 , W0 A: 9.82 , W0 B: 5.39 , W0 T: 1.0 ,.
- Nut_Dimension: Stock Code: CR06405PP , Material: Polypropylene , Material Reference: PP/HN , Head/Drive Type: Hexagon Nut , Overall Size: M5 , N (mm): M5 , HN B: 7.89 , HN H: 4.55 ,.
- Bolt_Dimension: Stock Code: CR03587PA66 , Material: Polyamide66 , Material Reference: PA66/P0 , Head/Drive Type: Cross Pan Head Bolt , Overall Size: M5 x 20 , Metric Size: M5 , D: 5 , Pitch: 0.8 , L: 20 , HD: 9.32 , HH: 3.61 ,.
