Features:

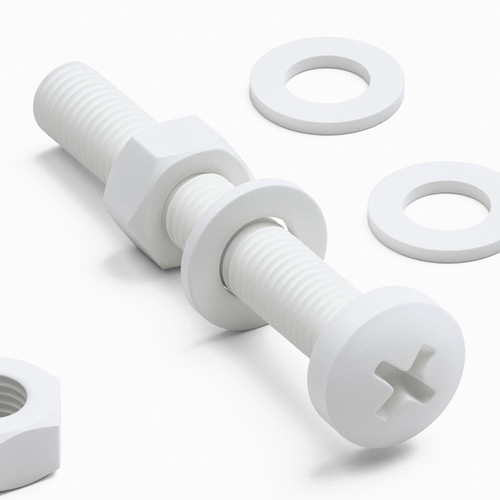

- 20x Bolts, 20x Nuts, 20x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Pan Cross Head Bolts. Length: 60mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 726.
- Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Secure and sturdy tightening with crosshead screwdriver.
Product Summary:
Polypropylene has good chemical resistance over a wide range of bases and acids, along with excellent impact strength. It is also economical, combining outstanding physical, chemical, mechanical, thermal, and electrical properties not found in any other thermoplastic. Additionally, it does not break when repeatedly bent and maintains its resistance to moisture absorption, making it highly durable and reliable across various applications. Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M8 x 60mm |
| Material | PP / Polypropylene |
| Colour | White |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 60 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 2.362 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Material Data Sheet | PP Datasheet |
| Product Data Sheet | PP Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03612PA66 Head/Drive Type: Cross Pan Head Bolt size: M8 x 60 D: 8 mm Pitch: 1.25 mm L: 60 mm HD: 15.79 mm HH: 5.85 mm |
| Nut Dimensions | Stock Code: CR06407PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M8 N (mm): M8 HN B: 12.87 mm HN H: 6.62 mm |
| Washer Dimensions | Stock Code: CR06609PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M8 W0 A: 15.78 mm W0 B: 8.51 mm W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 60 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
