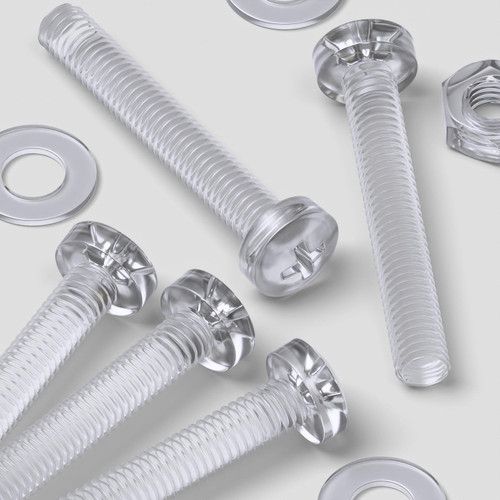

20x Bolts, 20x Nuts, 20x Washers. Material: Acrylic / PC. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 3mm. Pitch: 0.5mm. SKU: H5-M4N3-A0UC.
Exhibiting high transparency of up to 92% and reflectance of roughly 4%, acrylic is a good alternative to glass.
Moderate chemical resistance to mild acids, alcohols, and oils. Low moisture absorption, excellent electrical insulation properties
Secure and robust tightening achieved with a crosshead screwdriver.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M3 x 20mm.
- Colour_Reference: Clear.
- Material_Reference: Acrylic / Polycarbonate.
- Type_Reference: Pan Cross Head Bolts.
- Quantity_Reference: 20.
- Pitch_(mm): 0.5.
Dimensions (L x W x D mm):
20 x 3 x 3.Additional Specifications:
- Washer_Dimension: Stock Code: CR06590PC , Material: Polycarbonate , Material Reference: PC/W0 , Head/Drive Type: Flat washer , Overall Size: M3 , W0 A: 6.82 , W0 B: 3.29 , W0 T: 0.5 ,.
- Nut_Dimension: Stock Code: CR06481PC , Material: Polycarbonate , Material Reference: PC/HN , Head/Drive Type: Hexagon Nut , Overall Size: M3 , N (mm): M3 , HN B: 5.41 , HN H: 2.28 ,.
- Bolt_Dimension: Stock Code: CR03422PC , Material: Polycarbonate , Material Reference: PC/P0 , Head/Drive Type: Cross Pan Head Bolt , Overall Size: M3 x 20 , Metric Size: M3 , D: 3 , Pitch: 0.5 , L: 20 , HD: 5.45 , HH: 2.33 ,.
