Features:

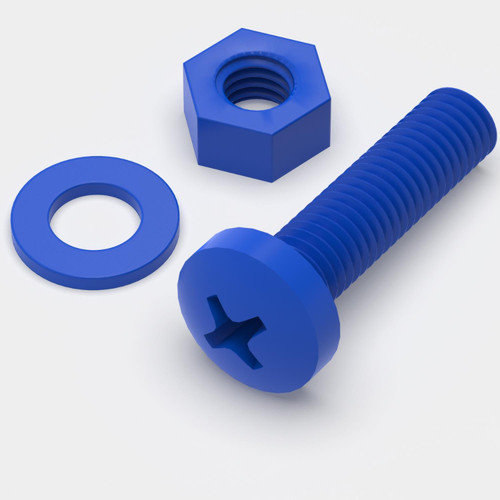

- 20x Bolts, 20x Nuts, 20x Washers. Material: PP. Pantone 19-4057-TCX. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 198.
- Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Secure and sturdy tightening with crosshead screwdriver.
Product Summary:
Polypropylene has good chemical resistance to a wide range of bases and acids and excellent impact strength. It is also economical, combining excellent physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic. In addition, it does not break after repeated bending and retains its resistance to moisture absorption, making it highly durable and reliable in a wide range of applications. Bolts & Screws also known as plastic bolts, plastic screws, plastic bolts, plastic screw
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M5 x 20mm |
| Material | PP / Polypropylene |
| Colour | Blue |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 5.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 5 mm (W) |
| Thickness / Depth -mm | 5 mm (D) |
| Pitch - mm | 0.8 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.197 |
| Thickness / Depth -inches | 0.197 |
| Pitch - inches | 0.031 |
| Product Download Sheets | |
| Material Data Sheet | PP Datasheet |
| Product Data Sheet | PP Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03587PA66 Head/Drive Type: Cross Pan Head Bolt size: M5 x 20 D: 5 mm Pitch: 0.8 mm L: 20 mm HD: 9.32 mm HH: 3.61 mm |
| Nut Dimensions | Stock Code: CR06405PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M5 N (mm): M5 HN B: 7.89 mm HN H: 4.55 mm |
| Washer Dimensions | Stock Code: CR06607PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M5 W0 A: 9.82 mm W0 B: 5.39 mm W0 T: 1.0 mm |
| Width -mm | 5 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 5 mm (D) |
| Diameter -mm | 5.00 |
