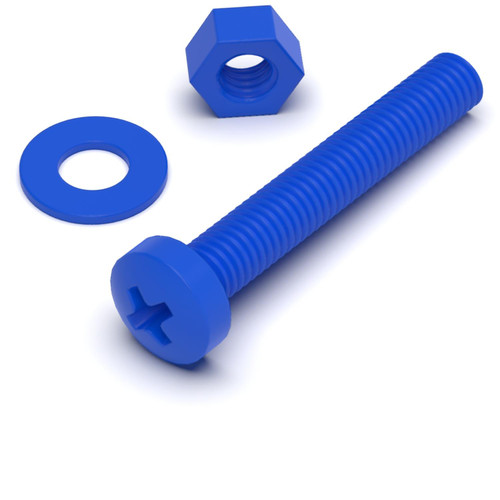

20x Bolts, 20x Nuts, 20x Washers. Material: PP. Pantone 19-4057-TCX. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 3mm. Pitch: 0.5mm. SKU: 195.
Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
Polypropylene has a high strength-to-weight ratio, is inherently flexible, and is moderately resistant to impact.
Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
Secure and robust tightening achieved with a crosshead screwdriver.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M3 x 20mm.
- Colour_Reference: Blue.
- Material_Reference: PP / Polypropylene.
- Type_Reference: Pan Cross Head Bolts.
- Quantity_Reference: 20.
- Pitch_(mm): 0.5.
Dimensions (L x W x D mm):
35 x 3 x 3.Additional Specifications:
- Washer_Dimension: Stock Code: CR06605PP , Material: Polypropylene , Material Reference: PP/W0 , Head/Drive Type: Flat washer , Overall Size: M3 , W0 A: 6.82 , W0 B: 3.29 , W0 T: 0.5 ,.
- Nut_Dimension: Stock Code: CR06403PP , Material: Polypropylene , Material Reference: PP/HN , Head/Drive Type: Hexagon Nut , Overall Size: M3 , N (mm): M3 , HN B: 5.41 , HN H: 2.28 ,.
- Bolt_Dimension: Stock Code: CR03568PA66 , Material: Polyamide66 , Material Reference: PA66/P0 , Head/Drive Type: Cross Pan Head Bolt , Overall Size: M3 x 20 , Metric Size: M3 , D: 3 , Pitch: 0.5 , L: 20 , HD: 5.45 , HH: 2.33 ,.
