Features:

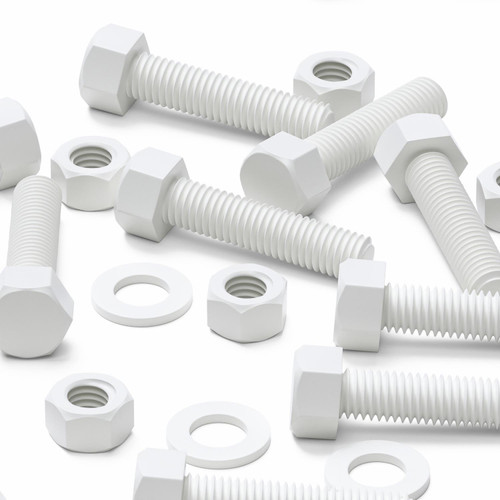

- 10x Bolts, 10x Nuts, 10x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Hex Head Bolts. Length: 50mm. Diameter: 12mm. Pitch: 1.75mm. SKU: 669.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene exhibits excellent chemical resistance to most acids, alkalis, and solvents. This material has great moisture resistance as it does not absorb moisture.
- Offers a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Repeated removal and refitting with excellent resistance to stripping in high torque applications. Sits above the surface for access for fitting and removal.
Product Summary:
Polypropylene is water, corrosion and chemical resistant and provides excellent electrical insulation. It does not absorb or release moisture and retains its shape after repeated twisting due to its good fatigue resistance and ability to avoid stress cracking. The material is light, strong and non-conductive, with a slippery surface that reduces wear but also results in a relatively high coefficient of friction. Hex Bolts & Screws also known as Plastic Bolts, Plastic Screws, Plastic Bolt, Plastic Screw
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M12 x 50mm |
| Material | PP / Polypropylene |
| Colour | White |
| Quantity | 10 |
| Dimensions - mm | |
| Diameter -mm | 12.00 |
| Length - mm | 50 mm (L) |
| Width -mm | 12 mm (W) |
| Thickness / Depth -mm | 12 mm (D) |
| Pitch - mm | 1.75 |
| Dimensions - Inches Conversion | |
| Length -inches | 1.969 |
| Width -inches | 0.472 |
| Thickness / Depth -inches | 0.472 |
| Pitch - inches | 0.069 |
| Product Download Sheets | |
| Material Data Sheet | PP Datasheet |
| Product Data Sheet | PP Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR01470PP Head/Drive Type: Hexagon Head Bolt size: M12 x 50 D: 12 mm Pitch: 1.75 mm L: 50 mm HD: 17.79 mm HH: 7.5 mm |
| Nut Dimensions | Stock Code: CR06409PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M12 N (mm): M12 HN B: 17.87 mm HN H: 10.59 mm |
| Washer Dimensions | Stock Code: CR06611PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M12 W0 A: 23.74 mm W0 B: 13.14 mm W0 T: 2.5 mm |
| Width -mm | 12 mm (W) |
| Length - mm | 50 mm (L) |
| Thickness / Depth -mm | 12 mm (D) |
| Diameter -mm | 12.00 |
