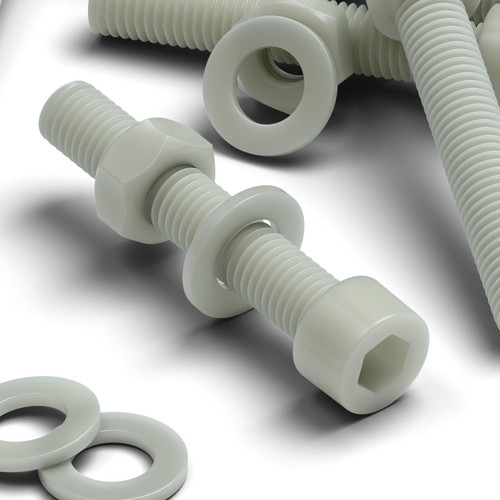

10x Bolts, 10x Nuts, 10x Washers. Material: PA 66 / 50% GF. Type: Socket Head Bolts. Length: 50mm. Diameter: 10mm. Pitch: 1.5mm. SKU: 819.
The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
The composite also possesses superior hardness, surface durability, and wear resistance compared to PA66.
Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M10 x 50mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon PA 66 / 50% Glass Fibre Reinforced.
- Type_Reference: Socket Head Bolts.
- Quantity_Reference: 10.
- Pitch_(mm): 1.5.
Dimensions (L x W x D mm):
50 x 10 x 10.Additional Specifications:
- Washer_Dimension: Stock Code: CR06529PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/W0 , Head/Drive Type: Flat Washer , Overall Size: M10 , W0 A: 19.74 , W0 B: 10.64 , W0 T: 2.0 ,.
- Nut_Dimension: Stock Code: CR06361PEEK , Material: Polyether ether ketone , Material Reference: PEEK/HN , Head/Drive Type: Hexagon Nut , Overall Size: M10 , N (mm): M10 , HN B: 15.87 , HN H: 8.22 ,.
- Bolt_Dimension: Stock Code: CR02340PA66+GF , Material: Polyamide+fiberglass , Material Reference: PA66+GF/S0 , Head/Drive Type: Socket Hex Head Bolt , Overall Size: M10 x 50 , Metric Size: M10 , D: 10 , Pitch: 1.5 , L: 50 , HD: 16.0 , HH: 9.82 , HS: 8.1 ,.
