Stock code AC-H456-ZRT8

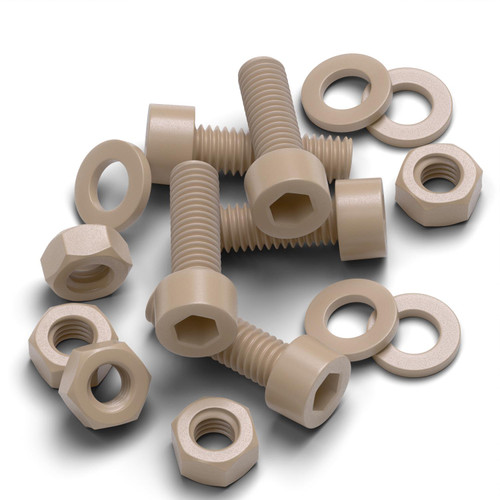

5x Natural PEEK Socket Head Screws & Bolts M6 x 20 mm, Nuts & Washers

5x Natural PEEK Socket Head Screws & Bolts M6 x 20 mm, Nuts & Washers

The details, at a glance.

  • Thread M6
  • Length 20 mm
  • Material PEEK / Polyether ether ketone
  • Colour Natural
  • Pack size 5
Prices
Price per pack £24.74 ex VAT · £29.69 inc VAT
Current Stock:

    Adding to basket… Added to your basket.
    Request a quote

    In stock

    Need another length?

    20 mm65 mm

    Dimensions & documents

    Conformity Safety PEEK — Material Datasheet PEEK — Screws & Bolts Datasheet Technical drawing

    Check the fit. Technical specification

    Product type
    Socket Head Bolts
    Size (mm)
    M6 x 20mm
    Thread
    M6
    Material
    PEEK / Polyether ether ketone
    Colour
    Natural
    Pack size
    5
    Diameter
    6.00 mm
    Length
    20 mm
    Width
    6 mm
    Thickness / depth
    6 mm
    Pitch
    1 mm

    Bolt, nut and washer dimensions

    Bolt

    Head/Drive Type: Socket Hex Head Bolt, size: M6 x 20, D: 6 mm, Pitch: 1 mm, L: 20 mm, HD: 10 mm, HH: 5.85 mm, HS: 5.08 mm

    Nut

    Material: Polyether ether ketone, Head/Drive Type: Hexagon Nut, size: M6, N (mm): M6, HN B: 9.89 mm, HN H: 5.05 mm

    Washer

    Material: Polyether ether ketone, Head/Drive Type: Flat washer, size: M6, W0 A: 11.78 mm, W0 B: 6.51 mm, W0 T: 1.6 mm

    Description

    Features

    • 5x Bolts, 5x Nuts, 5x Washers. Colour: Natural. Material: PEEK. Type: Socket Head Bolts. Length: 20mm. Diameter: 6mm. Pitch: 1mm. Head diameter: 10mm. Head height: 5.8mm. Hex key: 5mm. SKU: AC-H456-ZRT8.
    • PEEK (polyetheretherketone) is a high-performance engineering plastic with excellent mechanical strength and dimensional stability.
    • PEEK resists most acids, bases and organic solvents. Some strong acids, halogens, halogenated compounds and aliphatic hydrocarbons can cause degradation at high temperatures.
    • PEEK offers hydrolysis resistance to steam and hot water, with thermal stability for continuous use at temperatures up to 250 °C.
    • Socket head bolts are tightened and loosened with a hex key. Also known as socket cap screws, hex socket screws.

    Product Summary

    PEEK (polyetheretherketone) is a high-performance engineering plastic with excellent mechanical strength and dimensional stability. It offers hydrolysis resistance to steam and hot water. PEEK resists most acids, bases and organic solvents, although some strong acids and other chemicals can cause degradation at high temperatures. It can be used continuously at temperatures up to 250 °C and has stable electrical insulating properties in high-heat environments.
