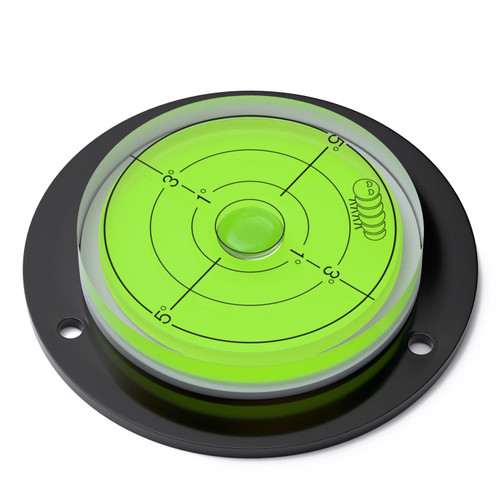

Features:
- Material: Acrylic / Polycarbonate. Type: Flanged Spirit Level. Outer Diameter (OD): 80mm. Inner Diameter (ID): 60mm. Depth (D): 16mm. Hole Size (HS): 4mm. SKU: UM-8BY4-WE6B.
- Sensitivity: 30' / 2mm. Offers speed and efficiency. A 30' sensitivity detects slopes of 8.727 mm/m, ideal for tasks where precision is secondary to speed.
- A level that features a base flange for secure mounting onto various surfaces. The design ensures accurate levelling by providing a stable reference point, minimising movement during measurements.
- Flanged bubble levels are used for secure mounting and precise alignment in tools such as tripods, industrial machines, workbenches, camera mounts and lab instruments.
- The black measuring grid radius marks, make for easy reading, and it is perfect for levelling large surface areas.
Product Summary:
Flanged bubble levels, with a secure rim for mounting, ensure precise alignment for tools, machinery, and equipment. Bubble levels use a liquid-filled vial and a central bubble to indicate alignment, vital for construction, surveying, and lab work. Durable, easy to install, and versatile, they’re key for stable and accurate measurements in diverse applications.
| Core Technical Details | |
|---|---|
| Product Type | Flanged Spirit Level |
| Material | Acrylic / Polycarbonate |
| Colour | Clear |
| Quantity | 1 |
| Dimensions - mm | |
| Diameter -mm | 80 mm (W) |
| Length - mm | 80 mm (L) |
| Thickness / Depth -mm | 16 mm (D) |
| Dimensions - Inches Conversion | |
| Length -inches | 3.15 |
| Width -inches | 3.15 |
| Thickness / Depth -inches | 0.63 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Flanged Levels — Material Sheet |
| Product Data Sheet | Flanged Levels — Product Sheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/All-General-Bubbles-Clear-With-Flange.png |
| Level Dimensions | Material: Acrylic / Polycarbonate Type: Flanged Spirit Level Outer Diameter (OD): 80 mm Inner Diameter (ID): 60 mm Depth (D): 16 mm Hole Size (HS): 4 mm SKU: UM-8BY4-WE6B. |
| Length - mm | 80 mm (L) |
| Thickness / Depth -mm | 16 mm (D) |
| Diameter -mm | 80 mm (W) |
