Features:

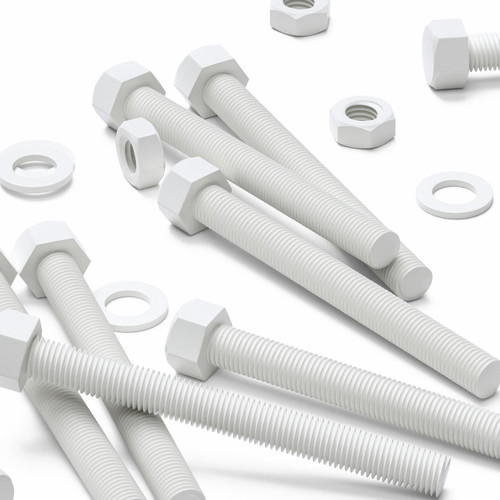

- 5x Bolts, 5x Nuts, 5x Washers. Pantone White 11-0601-TCX. Material: PP. Type: Hex Head Bolts. Length: 150 mm. Diameter: 16 mm. Pitch: 2 mm. SKU: 577.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene exhibits excellent chemical resistance to most acids, alkalis, and solvents. This material has great moisture resistance as it does not absorb moisture.
- Offers a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Repeated removal and refitting with excellent resistance to stripping in high torque applications. Sits above the surface for access for fitting and removal.
Product Summary:
Polypropylene is water, corrosion and chemical resistant and provides excellent electrical insulation. It does not absorb or release moisture and retains its shape after repeated twisting due to good fatigue resistance and resistance to stress cracking. The material is light, strong and non-conductive, with a low-friction surface that reduces wear. Hex head bolt kits are supplied with matching nuts and washers.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M16 x 150mm |
| Material | PP / Polypropylene |
| Colour | White |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 16.00 |
| Length - mm | 150 mm (L) |
| Width -mm | 16 mm (W) |
| Thickness / Depth -mm | 16 mm (D) |
| Pitch - mm | 2 |
| Dimensions - Inches Conversion | |
| Length -inches | 5.906 |
| Width -inches | 0.63 |
| Thickness / Depth -inches | 0.63 |
| Pitch - inches | 0.079 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polypropylene (PP) — Material Datasheet |
| Product Data Sheet | Polypropylene (PP) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR01512PP Head/Drive Type: Hexagon Head Bolt size: M16 x 150 D: 16 mm Pitch: 2 mm L: 150 mm HD: 23.58 mm HH: 10 mm |
| Nut Dimensions | Stock Code: CR06411PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M16 N (mm): M16 HN B: 23.84 mm HN H: 14.45 mm |
| Washer Dimensions | Stock Code: CR06613PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M16 W0 A: 29.74 mm W0 B: 17.14 mm W0 T: 3 mm |
| Width -mm | 16 mm (W) |
| Length - mm | 150 mm (L) |
| Thickness / Depth -mm | 16 mm (D) |
| Diameter -mm | 16.00 |
