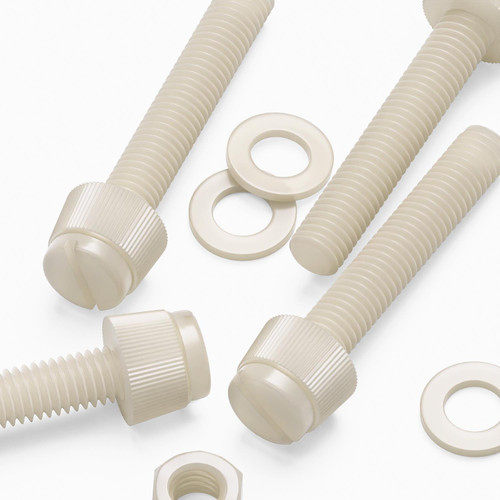

50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / Nylon. Type: Thumbscrews. Length: 30mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 855.
The ridges on knurled screws provide extra grip, whilst the large head diameter of the screws ensures they can be tightened with a high degree of rotational accuracy, ideal for precise fastening.
Nylon is a highly durable material with a high tensile strength and excellent resistance to wear and impact. It is also resistant to most organic solvents, fuels, oils, weak acids and bases.
Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
Straightforward manual adjustment, fastening, or removal without the need for tools, operate thumbscrews with just a thumb and forefinger. Additional slotted recess for fastening with a screwdriver.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M5 x 30mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon / Polyamide 66.
- Type_Reference: Thumbscrews.
- Quantity_Reference: 50.
- Pitch_(mm): 0.8.
Dimensions (L x W x D mm):
30 x 5 x 5.Additional Specifications:
- Washer_Dimension: Stock Code: CR06624PA66 , Material: Polyamide66 , Material Reference: PA66/W0 , Head/Drive Type: Flat washer , Overall Size: M5 , W0 A: 9.82 , W0 B: 5.39 , W0 T: 1.0 ,.
- Nut_Dimension: Stock Code: CR06437 PA66 , Material: Polyamide66 , Material Reference: PA66/HN , Head/Drive Type: Hexagon Nut , Overall Size: M5 , N (mm): M5 , HN B: 7.89 , HN H: 4.55 ,.
- Bolt_Dimension: Stock Code: CR06718PA66 , Material: Polyamide66 , Material Reference: PA66/T0 , Head/Drive Type: Slotted Knurled Thumbscrew , Overall Size: M5 x 30 , Metric Size: M5 , D: 5 , Pitch: 0.8 , L: 30 , HD: 9.99 , HH: 7.75 ,.
