Features:

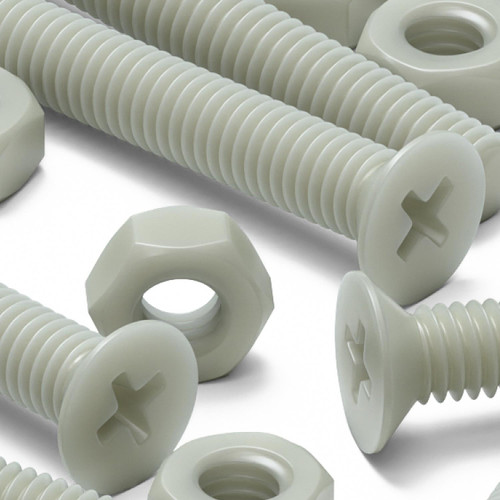

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Countersunk Cross Head Bolts. Length: 16mm. Diameter: 2mm. Pitch: 0.4mm. SKU: 540.
- Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
- Glass fiber-reinforced polyamide (PA66+GF) is a composite material derived from PA66 (nylon 66) and glass fibers.
- Improvements include greater tensile strength, deflection temperature, shear strength, and lower moisture absorption.
- Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
Product Summary:
While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Please note that the bolts are 50% glass filled nylon. Due to manufacturing constraints, the nuts and washers are nylon (no glass fill).
| Core Technical Details | |
|---|---|
| Product Type | Countersunk Cross Head Bolts |
| Size (mm) | M2 x 16mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 2.00 |
| Length - mm | 16 mm (L) |
| Width -mm | 2 mm (W) |
| Thickness / Depth -mm | 2 mm (D) |
| Pitch - mm | 0.4 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.63 |
| Width -inches | 0.079 |
| Thickness / Depth -inches | 0.079 |
| Pitch - inches | 0.016 |
| Product Download Sheets | |
| Material Data Sheet | Nylon GF50 Datasheet |
| Product Data Sheet | Nylon PA66 50% GF Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Countersunk-Head.png |
| Bolt Dimensions | Stock Code: CR04396PA+GF Head/Drive Type: Cross Countersunk Head Bolt size: M2 x 16 D: 2 mm Pitch: 0.4 mm L: 16 mm HD: 3.65 mm HH: 1.2 mm |
| Nut Dimensions | Stock Code: CR06367PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M2 N (mm): M2 HN B: 3.91 mm HN H: 1.47 mm |
| Washer Dimensions | Stock Code: CR06523PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/W0 Head/Drive Type: Flat Washer size: M2 W0 A: 4.85 mm W0 B: 2.27 mm W0 T: 0.3 mm |
| Width -mm | 2 mm (W) |
| Length - mm | 16 mm (L) |
| Thickness / Depth -mm | 2 mm (D) |
| Diameter -mm | 2.00 |
