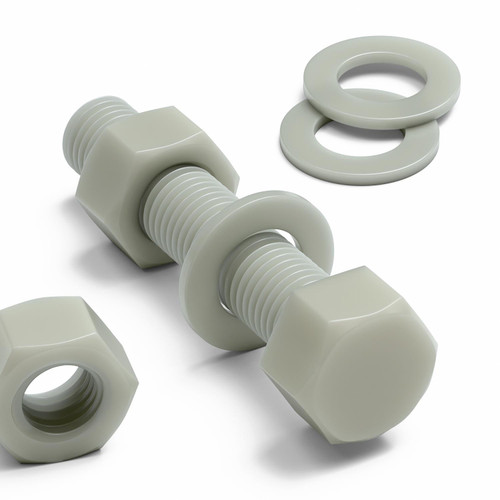

5x Bolts, 5x Nuts, 5x Washers. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 100mm. Diameter: 20mm. Pitch: 2.5mm. SKU: 720.
Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
PA66+GF is manufactured by compounding glass fibers with polyamide 66, typically in concentrations ranging from 15% to 60% by weight.
Hexagonal head designed for fastening and removal with a wrench or socket. Robust torque transfer for the most demanding fastening applications.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M20 x 100mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon PA 66 / 50% Glass Fibre Reinforced.
- Type_Reference: Hex Head Bolts.
- Quantity_Reference: 5.
- Pitch_(mm): 2.5.
Dimensions (L x W x D mm):
100 x 20 x 20.Additional Specifications:
- Washer_Dimension: Stock Code: CR06534PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/W0 , Head/Drive Type: Flat Washer , Overall Size: M20 , W0 A: 36.69 , W0 B: 21.17 , W0 T: 3.0 ,.
- Nut_Dimension: Stock Code: CR06378PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/HN , Head/Drive Type: Hexagon Nut , Overall Size: M20 , N (mm): M20 , HN B: 29.58 , HN H: 17.45 ,.
- Bolt_Dimension: Stock Code: CR01380PA66+GF , Material: Polyamide+fiberglass , Material Reference: PA66+GF/J0 , Head/Drive Type: Hexagon Head Bolt , Overall Size: M20 x 100 , Metric Size: M20 , D: 20 , Pitch: 2.5 , L: 100 , HD: 29.58 , HH: 12.5 ,.
