Stock code 1018

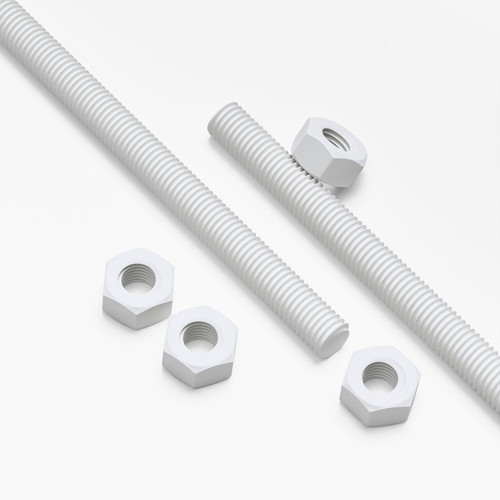

2x White Polypropylene (PP) M8 x 1000 mm Threaded Rods, Studding + 4 Nuts

Name: 2x White Polypropylene (PP) M8 x 1000 mm Threaded Rods, Studding + 4 Nuts
Brand: Caterpillar Red
SKU: 1018
Price: 31.49 GBP
Availability: InStock

A closer look.

The details, at a glance.

Thread M8
Length 1000 mm
Material PP / Polypropylene
Colour White
Pack size 2

Prices ex VAT inc VAT

Price per pack £26.24 ex VAT · £31.49 inc VAT

Current Stock:

Number of packs

Adding to basket… Added to your basket.

Request a quote

In stock

Need another length?

200 mm 300 mm 500 mm 1000 mm

Dimensions & documents

Polypropylene (PP) — Material Datasheet Polypropylene (PP) — Screws & Bolts Datasheet Conformity Safety Technical drawing

Check the fit. Technical specification

Product type: Threaded Rods
Size (mm): M8 x 1000mm
Thread: M8
Material: PP / Polypropylene
Colour: White
Pack size: 2
Diameter: 8.00 mm
Length: 1000 mm
Width: 8 mm
Thickness / depth: 8 mm
Pitch: 1.25 mm

Bolt, nut and washer dimensions

Technical drawing of this part with its dimensions marked

Bolt

Material: Polypropylene, Head/Drive Type: Fully Threaded Rod, size: M8 x 1000, D: 8 mm, Pitch: 1.25 mm, L: 1000 mm

Description

Features

Pack of 2 threaded rods. Colour: White. Material: PP / Polypropylene. Length: 1000mm. Diameter: 8mm. Pitch: 1.25mm. 4 nuts included (2 per rod). SKU: 1018.
Slim M8 PP thread for adjustable spacers, guide rods and alignment pieces where a lightweight plastic bar is preferred.
Polypropylene absorbs very little moisture and is electrically insulating, useful in suitable damp or mixed-material assemblies.
Full 1000 mm length can be cut into matched spacers or shorter threaded sections without losing the continuous thread form.
Use with compatible M8 nuts; check joint design and avoid over-tightening plastic threads. Also known as studding, allthread, threaded bar.

Product Summary

These white polypropylene (PP) M8 x 1000 mm threaded rods are supplied as a pack of 2 fully threaded plastic bars. The slimmer M8 size suits adjustable spacers, guide rods, alignment pieces and light non-metallic fixing points where a metal rod is not needed. PP is lightweight, electrically insulating and absorbs very little moisture, with resistance to many aqueous acids and alkalis when the environment is suitable. PP is inherently flexible, so check the joint design, nut engagement and service conditions before fitting. Cut to length for matched spacers or shorter threaded sections. Supplied with 4 nuts.
