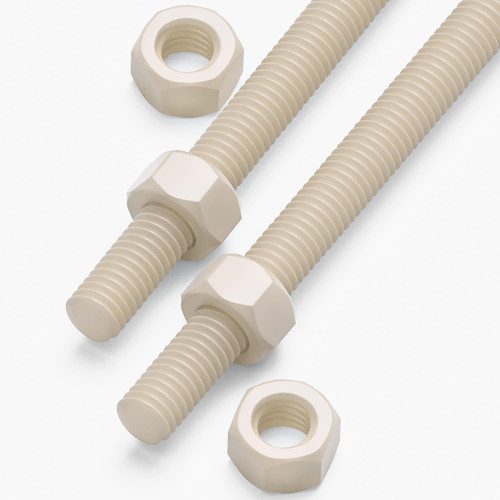

2x Natural Nylon PA66 M5 x 1000 mm Threaded Rods, Plastic Studding + 4 Nuts

Name: 2x Natural Nylon PA66 M5 x 1000 mm Threaded Rods, Plastic Studding + 4 Nuts
Brand: Caterpillar Red
SKU: 1007
Price: 27.89 GBP
Availability: InStock

A closer look.

The details, at a glance.

Thread M5
Length 1000 mm
Material Nylon / Polyamide 66
Colour Natural
Pack size 2

Prices ex VAT inc VAT

Price per pack £23.24 ex VAT · £27.89 inc VAT

Current Stock:

Number of packs

Adding to basket… Added to your basket.

Request a quote

In stock

Need another length?

200 mm 300 mm 500 mm 1000 mm

Dimensions & documents

Nylon PA66 — Material Datasheet Nylon PA66 — Screws & Bolts Datasheet Conformity Safety Technical drawing

Check the fit. Technical specification

Product type: Threaded Rods
Size (mm): M5 x 1000mm
Thread: M5
Material: Nylon / Polyamide 66
Colour: Natural
Pack size: 2
Diameter: 5.00 mm
Length: 1000 mm
Width: 5 mm
Thickness / depth: 5 mm
Pitch: 0.8 mm

Bolt, nut and washer dimensions

Technical drawing of this part with its dimensions marked

Bolt

Material: Nylon PA66, Head/Drive Type: Fully Threaded Rod, size: M5 x 1000, D: 5 mm, Pitch: 0.8 mm, L: 1000 mm

Description

Features

Pack of 2 threaded rods. Colour: Natural. Material: Nylon / Polyamide 66. Length: 1000mm. Diameter: 5mm. Pitch: 0.8mm. 4 nuts included (2 per rod). SKU: 1007.
Toughness and abrasion resistance make PA66 suitable for workshop studding and light fixtures.
PA66 can absorb moisture, which may affect its dimensions and mechanical properties.
The 1000 mm length can be kept whole or cut into several matching M5 threaded sections.
Use for panel spacing, custom stand-offs, light brackets and cut-to-length plastic threaded rods. Also known as studding, allthread, threaded bar.

Product Summary

These M5 x 1000 mm natural PA66 nylon threaded rods are supplied as two fully threaded plastic bars for custom stand-offs, panel spacing, light fixtures and non-metallic threaded runs. PA66 provides toughness and wear resistance for workshop assemblies that do not need metal studding. The 1000 mm length gives room for several shorter pieces or one longer run. Allow for nylon’s moisture uptake if dimensional stability is critical, and use compatible M5 nuts with sensible tightening force. Supplied with 4 nuts.
