20x Red PP Pan Head Cross Plastic Screws & Bolts M8 x 20 mm, Nuts & Washers

(6 reviews) Write a Review

SKU: 194

Sale £14.99
£13.49

Price excludes VAT

Adding to basket... The item has been added

Features:

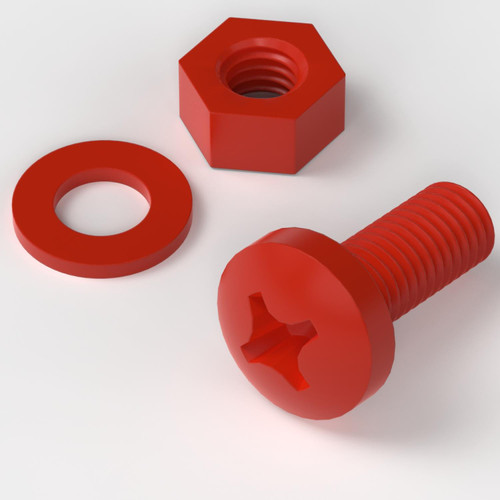

  • 20x Bolts, 20x Nuts, 20x Washers. Material: PP. Colour: Red. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 8mm. Pitch: 1.25mm. Head diameter: 15.8mm. Head height: 5.8mm. SKU: 194.
  • Polypropylene has good chemical resistance over a wide range of bases and acids, as well as organic solvents.
  • Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
  • Ideal for chemical and wet environments, electrical enclosures, plumbing and general assembly - a lightweight, non-corroding, electrically insulating fixing where metal bolts would rust or react.
  • Cross drive design for screwdriver installation and wide underside for even load distribution. Also known as cross-recess pan screws, pan head machine screws.

Product Summary:

Polypropylene has good chemical resistance to a wide range of bases and acids and moderate impact resistance. Polypropylene is an economical material that offers a combination of outstanding physical, chemical, mechanical, thermal and electrical properties. It withstands repeated flexing well and polypropylene is very resistant to absorbing moisture, making it highly durable and reliable in a wide range of applications. Bolts and screws are also known as plastic fasteners, plastic machine screws, polymer bolts and non-metallic screws.

Core Technical Details
Product Type Pan Cross Head Bolts
Size (mm) M8 x 20mm
Material PP / Polypropylene
Colour Red
Quantity 20
Dimensions - mm
Diameter -mm 8.00
Length - mm 20 mm (L)
Width -mm 8 mm (W)
Thickness / Depth -mm 8 mm (D)
Pitch - mm 1.25
Dimensions - Inches Conversion
Length -inches 0.787
Width -inches 0.315
Thickness / Depth -inches 0.315
Pitch - inches 0.0492
Product Download Sheets
Safety Data Sheet Conformity Safety
Material Data Sheet Polypropylene (PP) — Material Datasheet
Product Data Sheet Polypropylene (PP) — Screws & Bolts Datasheet
Type
Technical Drawing https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png
Bolt Dimensions Head/Drive Type: Cross Pan Head Bolt, size: M8 x 20, D: 8 mm, Pitch: 1.25 mm, L: 20 mm, HD: 15.79 mm, HH: 5.85 mm
Nut Dimensions Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M8, N (mm): M8, HN B: 12.87 mm, HN H: 6.62 mm
Washer Dimensions Material: Polypropylene, Head/Drive Type: Flat washer, size: M8, W0 A: 15.78 mm, W0 B: 8.51 mm, W0 T: 1.6 mm
Width -mm 8 mm (W)
Length - mm 20 mm (L)
Thickness / Depth -mm 8 mm (D)
Diameter -mm 8.00
