Features:

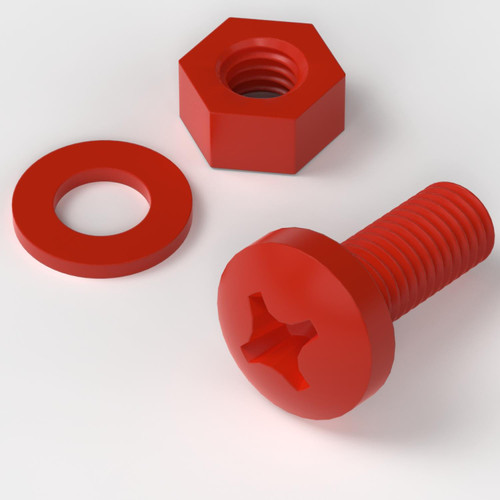

- 20x Bolts, 20x Nuts, 20x Washers. Material: PP. Pantone 19-1664-TPX. Type: Pan Cross Head Bolts. Length: 20 mm. Diameter: 8 mm. Pitch: 1.25 mm. SKU: 194.
- Polypropylene’s chemical resistance includes resistance to acids, alkalis, and organic solvents.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Has a combination of outstanding physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic.
- Cross drive design for screwdriver installation and wide underside for even load distribution.
Product Summary:
Polypropylene has good chemical resistance to a wide range of bases and acids and excellent impact strength. It is also economical, combining excellent physical, chemical, mechanical, thermal and electrical properties not found in any other thermoplastic. In addition, it does not break after repeated bending and retains its resistance to moisture absorption, making it highly durable and reliable in a wide range of applications. Bolts and screws are also known as plastic fasteners, plastic machine screws, polymer bolts and non-metallic screws.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M8 x 20mm |
| Material | PP / Polypropylene |
| Colour | Red |
| Quantity | 20 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Polypropylene (PP) — Material Datasheet |
| Product Data Sheet | Polypropylene (PP) — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03694PP Head/Drive Type: Cross Pan Head Bolt size: M8 x 20 D: 8 mm Pitch: 1.25 mm L: 20 mm HD: 15.79 mm HH: 5.85 mm |
| Nut Dimensions | Stock Code: CR06407PP Material: Polypropylene Material Reference: PP/HN Head/Drive Type: Hexagon Nut size: M8 N (mm): M8 HN B: 12.87 mm HN H: 6.62 mm |
| Washer Dimensions | Stock Code: CR06609PP Material: Polypropylene Material Reference: PP/W0 Head/Drive Type: Flat washer size: M8 W0 A: 15.78 mm W0 B: 8.51 mm W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
