Stock code 593

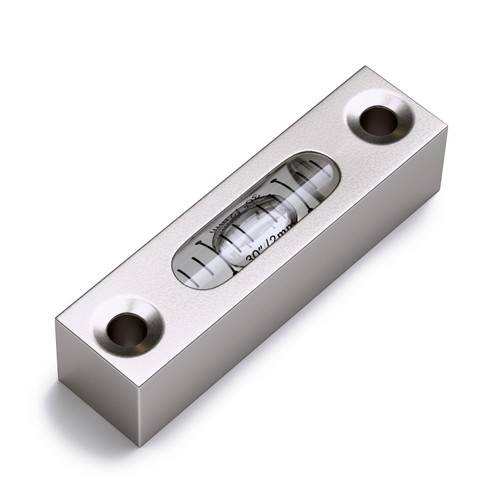

Metal Precision Level Glass Vial, Spirit Bubble Level, 58 mm, MGV-581514-CS
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Tube Spirit Vial Levels
- Material
- Aluminium
- Colour
- Clear
- Pack size
- 1
- Diameter
- 15 mm
- Length
- 58 mm
- Width
- 15 mm
- Thickness / depth
- 14 mm
- Sensitivity
- 30" / 2mm
- Has a nib
- No
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Conformity SafetyPDF document
- Tube Vials — Material SheetPDF document
- Tube Vials — Product SheetPDF document

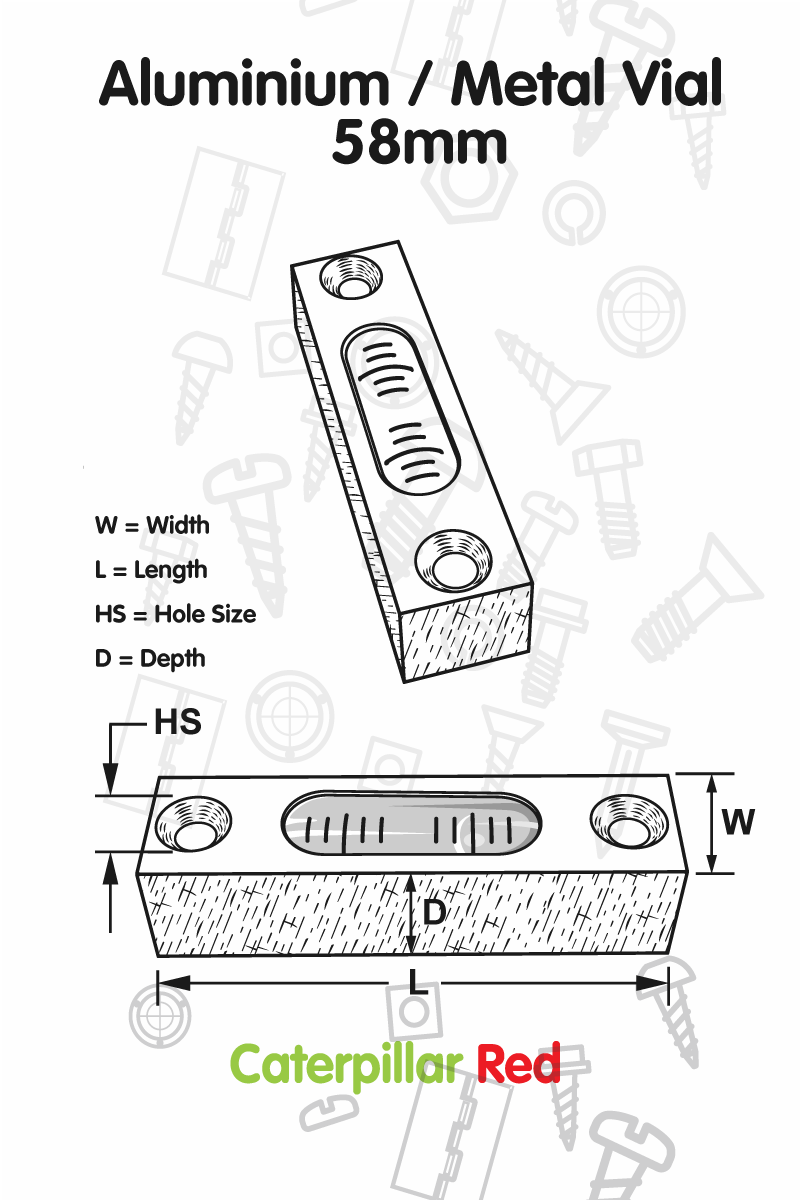

- Technical drawingDrawing, image
Description
Features
- Quantity: 1. Material: Aluminium. Type: Tube Spirit Vial Levels. Fluid: Clear. Length (L): 58mm. Width (W): 15mm. Depth (D): 14mm. Hole (HS): 5mm. SKU: 593.
- Sensitivity: 30″ / 2 mm.
- The aluminium housing holds the vial in position. Mounting holes allow the level to be secured to suitable equipment.
- The bubble level's sensitivity is measured by the tilt required to move the bubble 2 mm, with lower angles indicating higher sensitivity.
- The fluid-filled vial has permanently baked ceramic lines to indicate readings. It can be used as a replacement part or on its own. Also known as level vials, tubular vials, spirit level inserts.
Product Summary
This tubular spirit level has an aluminium housing and clear fluid. It measures 58 x 15 x 14 mm and has mounting holes. The bubble and indication lines provide a reference for checking surface alignment. It can be used in replacement or custom levelling setups.
