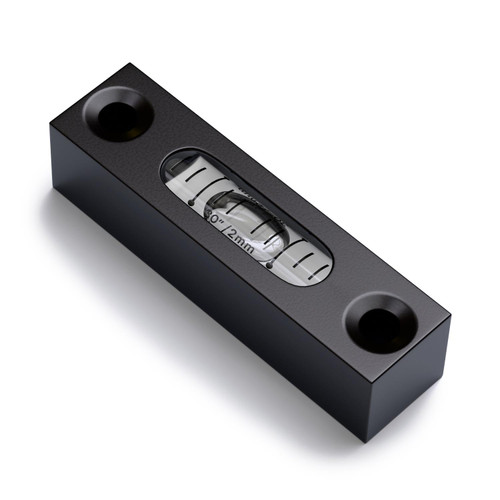

Features:
- Quantity: 1. Material: Aluminium. Type: Tube Spirit Vial Levels. Fluid: Clear. Length (L): 58mm. Width (W): 15mm. Depth (D): 14mm. Hole (HS): 5mm. SKU: 592.
- Sensitivity: 30″ / 2 mm.
- The aluminium housing holds the vial in position. Mounting holes allow the level to be secured to suitable equipment.
- The bubble level's sensitivity is measured by the tilt required to move the bubble 2 mm, with lower angles indicating higher sensitivity.
- The fluid-filled vial has permanently baked ceramic lines to indicate readings. It can be used as a replacement part or on its own. Also known as level vials, tubular vials, spirit level inserts.
Product Summary:
This tubular spirit level has an aluminium housing and clear fluid. It measures 58 x 15 x 14 mm and has mounting holes. The bubble and indication lines provide a reference for checking surface alignment. It can be used in replacement or custom levelling setups.
| Core Technical Details | |
|---|---|
| Product Type | Tube Spirit Vial Levels |
| Material | Aluminium |
| Colour | Clear |
| Quantity | 1 |
| Dimensions - mm | |
| Diameter -mm | 15 mm (W) |
| Length - mm | 58 mm (L) |
| Thickness / Depth -mm | 14 mm (D) |
| Dimensions - Inches Conversion | |
| Length -inches | 2.283 |
| Width -inches | 0.591 |
| Thickness / Depth -inches | 0.551 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Tube Vials — Material Sheet |
| Product Data Sheet | Tube Vials — Product Sheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/Aluminium-Metal-Vial-Clear-58mm.png |
| Level Dimensions | Material: Aluminium Type: Tube Spirit Vial Levels Fluid: Clear Length (L): 58 mm Width (W): 15 mm Depth (D): 14 mm Hole (HS): 5 mm SKU: 592. |
| Length - mm | 58 mm (L) |
| Thickness / Depth -mm | 14 mm (D) |
| Diameter -mm | 15 mm (W) |
