Features:

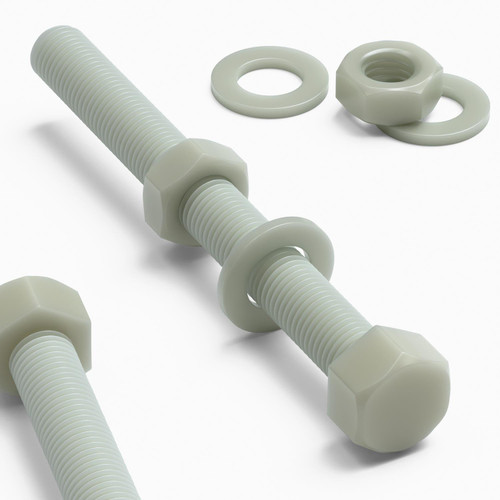

- 5x Bolts, 5x Nuts, 5x Washers. Colour: natural. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 150mm. Diameter: 16mm. Pitch: 2mm. Across flats: 23.5mm. Head height: 10mm. SKU: 927.
- 50% glass-filled nylon demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
- PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
- This product contains 50% glass fibre.
- The hexagonal head is designed for fastening and removal with a wrench or socket. Also known as hex bolts, hexagon head screws.
Product Summary:
While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex head bolts are also known as plastic bolts or plastic screws.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M16 x 150mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 16.00 |
| Length - mm | 150 mm (L) |
| Width -mm | 16 mm (W) |
| Thickness / Depth -mm | 16 mm (D) |
| Pitch - mm | 2 |
| Dimensions - Inches Conversion | |
| Length -inches | 5.906 |
| Width -inches | 0.63 |
| Thickness / Depth -inches | 0.63 |
| Pitch - inches | 0.0787 |
| Product Download Sheets | |
| Material Data Sheet | Nylon PA66 50% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 50% Glass Fibre — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Head/Drive Type: Hexagon Head Bolt, size: M16 x 150, D: 16 mm, Pitch: 2 mm, L: 150 mm, HD: 23.58 mm, HH: 10 mm |
| Nut Dimensions | Material: Polyamide+fiberglass, Head/Drive Type: Hexagon Nut, size: M16, N (mm): M16, HN B: 23.84 mm, HN H: 14.45 mm |
| Washer Dimensions | Material: Polyamide+fiberglass, Head/Drive Type: Flat washer, size: M16, W0 A: 29.74 mm, W0 B: 17.14 mm, W0 T: 3 mm |
| Width -mm | 16 mm (W) |
| Length - mm | 150 mm (L) |
| Thickness / Depth -mm | 16 mm (D) |
| Diameter -mm | 16.00 |
