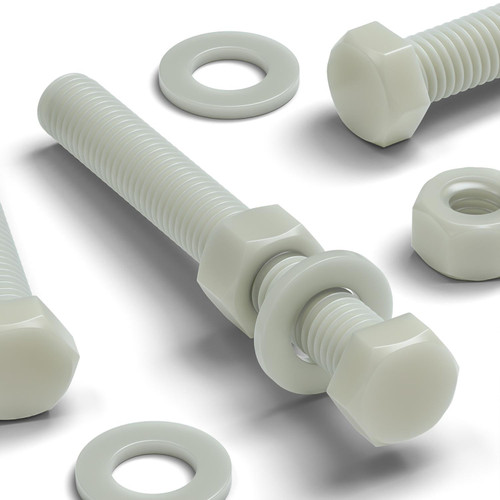

Features:
- 5x Bolts, 5x Nuts, 5x Washers. Material: PA 66 / 50% GF. Type: Hex Head Bolts. Length: 100mm. Diameter: 12mm. Pitch: 1.75mm. SKU: 870.
- Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
- PA66+GF demonstrates excellent chemical resistance to oils, fuels, and most solvents.
- PA66+GF is manufactured by compounding glass fibers with polyamide 66, typically in concentrations ranging from 15% to 60% by weight.
- Hexagonal head designed for fastening and removal with a wrench or socket. Robust torque transfer for the most demanding fastening applications.
Product Summary:
PA66 with 50% glass fibre reinforcement offers higher stiffness, strength and heat deflection resistance than unfilled PA66, with reduced moisture absorption. These natural glass-filled nylon hex-head fasteners are lightweight, non-corrosive and electrically insulating, making them suitable for machinery, automotive, electrical and general engineering applications where metal fasteners are not required.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M12 x 100mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 12.00 |
| Length - mm | 100 mm (L) |
| Width -mm | 12 mm (W) |
| Thickness / Depth -mm | 12 mm (D) |
| Pitch - mm | 1.75 |
| Dimensions - Inches Conversion | |
| Length -inches | 3.937 |
| Width -inches | 0.472 |
| Thickness / Depth -inches | 0.472 |
| Pitch - inches | 0.069 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 50% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 50% Glass Fibre — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Stock Code: CR01324PA66+GF Head/Drive Type: Hexagon Head Bolt size: M12 x 100 D: 12 mm Pitch: 1.75 mm L: 100 mm HD: 17.79 mm HH: 7.5 mm |
| Nut Dimensions | Stock Code: CR06374PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M12 N (mm): M12 HN B: 17.87 mm HN H: 10.59 mm |
| Washer Dimensions | Stock Code: CR06530PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/W0 Head/Drive Type: Flat Washer size: M12 W0 A: 23.74 mm W0 B: 13.14 mm W0 T: 2.5 mm |
| Width -mm | 12 mm (W) |
| Length - mm | 100 mm (L) |
| Thickness / Depth -mm | 12 mm (D) |
| Diameter -mm | 12.00 |
