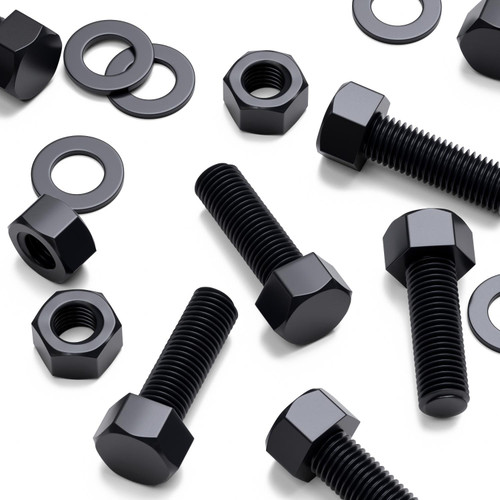

5x Black PP Hex Head Plastic Screws & Bolts M20 x 60 mm, Nuts & Washers

(No reviews yet) Write a Review

SKU: 680

Was: £21.99
Now: £19.79 (Inc. VAT)
Sale £18.33
£16.49 (Ex. VAT)

Price excludes VAT

Adding to basket... The item has been added

Features:

  • 5x Bolts, 5x Nuts, 5x Washers. Pantone 3C Black. Material: PP. Type: Hex Head Bolts. Length: 60mm. Diameter: 20mm. Pitch: 2.5mm. Across flats: 29.5mm. Head height: 12.5mm. SKU: 680.
  • Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
  • Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
  • These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
  • The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.

Product Summary:

Pack of 5 black polypropylene hex head bolts, M20 x 60 mm, with 5 nuts and 5 washers. Thread pitch: 2.5 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.

Core Technical Details
Product Type Hex Head Bolts
Size (mm) M20 x 60mm
Material PP / Polypropylene
Colour Black
Quantity 5
Dimensions - mm
Diameter -mm 20.00
Length - mm 60 mm (L)
Width -mm 20 mm (W)
Thickness / Depth -mm 20 mm (D)
Pitch - mm 2.5
Dimensions - Inches Conversion
Length -inches 2.362
Width -inches 0.787
Thickness / Depth -inches 0.787
Pitch - inches 0.0984
Product Download Sheets
Safety Data Sheet Conformity Safety
Material Data Sheet Polypropylene (PP) — Material Datasheet
Product Data Sheet Polypropylene (PP) — Screws & Bolts Datasheet
Type
Technical Drawing https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png
Bolt Dimensions Head/Drive Type: Hexagon Head Bolt, size: M20 x 60, D: 20 mm, Pitch: 2.5 mm, L: 60 mm, HD: 29.58 mm, HH: 12.5 mm
Nut Dimensions Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M20, N (mm): M20, HN B: 29.58 mm, HN H: 17.45 mm
Washer Dimensions Material: Polypropylene, Head/Drive Type: Flat washer, size: M20, W0 A: 36.69 mm, W0 B: 21.17 mm, W0 T: 3 mm
Width -mm 20 mm (W)
Length - mm 60 mm (L)
Thickness / Depth -mm 20 mm (D)
Diameter -mm 20.00
