Stock code 679

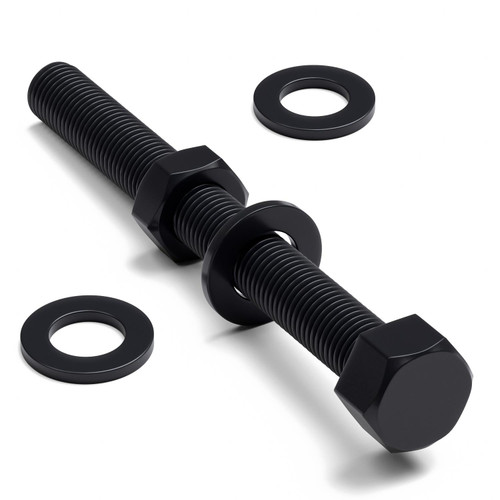

5x Black PP Hex Head Plastic Screws & Bolts M16 x 150 mm, Nuts & Washers
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Hex Head Bolts
- Size (mm)
- M16 x 150mm
- Thread
- M16
- Material
- PP / Polypropylene
- Colour
- Black
- Pack size
- 5
- Diameter
- 16.00 mm
- Length
- 150 mm
- Width
- 16 mm
- Thickness / depth
- 16 mm
- Pitch
- 2 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Conformity SafetyPDF document
- Polypropylene (PP) — Material DatasheetPDF document
- Polypropylene (PP) — Screws & Bolts DatasheetPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Hexagon Head Bolt, size: M16 x 150, D: 16 mm, Pitch: 2 mm, L: 150 mm, HD: 23.58 mm, HH: 10 mm
Nut
Material: Polypropylene, Head/Drive Type: Hexagon Nut, size: M16, N (mm): M16, HN B: 23.84 mm, HN H: 14.45 mm
Washer
Material: Polypropylene, Head/Drive Type: Flat washer, size: M16, W0 A: 29.74 mm, W0 B: 17.14 mm, W0 T: 3 mm
Description
Features
- 5x Bolts, 5x Nuts, 5x Washers. Pantone 3C Black. Material: PP. Type: Hex Head Bolts. Length: 150mm. Diameter: 16mm. Pitch: 2mm. Across flats: 23.5mm. Head height: 10mm. SKU: 679.
- Polypropylene is renowned for its high strength-to-weight ratio, inherent flexibility, and moderate resistance to impact.
- Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is very resistant to absorbing moisture.
- These lightweight, non-corroding, insulating fixings are suited to chemical and wet environments, electrical enclosures and general assembly where metal would rust or react.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.
Product Summary
Pack of 5 black polypropylene hex head bolts, M16 x 150 mm, with 5 nuts and 5 washers. Thread pitch: 2 mm. Polypropylene has good chemical resistance over a wide range of bases and acids, as well as most solvents. It is an economical, lightweight material with a high strength-to-weight ratio, inherent flexibility and moderate impact resistance. Polypropylene is very resistant to absorbing moisture and is a good electrical insulator. The material is non-corroding. Hex head bolts are also known as plastic bolts or plastic screws.
