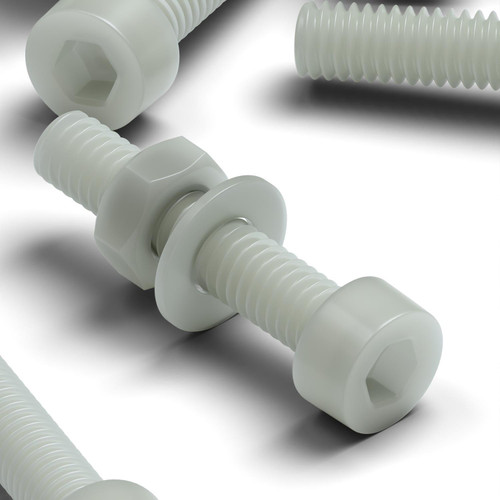

Comparable to RENY. 50x Bolts, 50x Washers, 50x Nuts.
Nylon+GF is a 50% glass fiber reinforced Super Nylon. Far stronger than the 30% version available.
The Glass-Reinforced nylon has outstanding property improvements over un-reinforced Nylon compositions.
Improvements include greater tensile strength, deflection temperature, shear strength, and lower moisture absorption.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M3 x 20mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon PA 66 / 50% Glass Fibre Reinforced.
- Type_Reference: Socket Head Bolts.
- Quantity_Reference: 50.
- Pitch_(mm): 0.5.
Dimensions (L x W x D mm):
20 x 3 x 3.Additional Specifications:
- Washer_Dimension: Stock Code: CR06524PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/W0 , Head/Drive Type: Flat Washer , Overall Size: M3 , W0 A: 6.82 , W0 B: 3.29 , W0 T: 0.5 ,.
- Nut_Dimension: Stock Code: CR06368PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/HN , Head/Drive Type: Hexagon Nut , Overall Size: M3 , N (mm): M3 , HN B: 5.41 , HN H: 2.28 ,.
- Bolt_Dimension: Stock Code: CR02285PA66+GF , Material: Polyamide+fiberglass , Material Reference: PA66+GF/S0 , Head/Drive Type: Socket Hex Head Bolt , Overall Size: M3 x 20 , Metric Size: M3 , D: 3 , Pitch: 0.5 , L: 20 , HD: 5.5 , HH: 2.93 , HS: 2.55 ,.
