Stock code 507

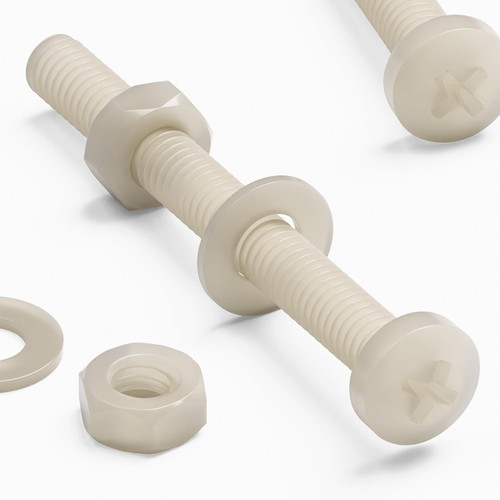

50x Natural Nylon Pan Head Machine Screws & Bolts M4 x 40 mm, Nuts & Washers
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Pan Cross Head Bolts
- Size (mm)
- M4 x 40mm
- Thread
- M4
- Material
- Nylon / Polyamide 66
- Colour
- Natural
- Pack size
- 50
- Diameter
- 4.00 mm
- Length
- 40 mm
- Width
- 4 mm
- Thickness / depth
- 4 mm
- Pitch
- 0.7 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Conformity SafetyPDF document
- Nylon PA66 — Material DatasheetPDF document
- Nylon PA66 — Screws & Bolts DatasheetPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Cross Pan Head Bolt, size: M4 x 40, D: 4 mm, Pitch: 0.7 mm, L: 40 mm, HD: 7.82 mm, HH: 3.01 mm
Nut
Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M4, N (mm): M4, HN B: 6.89 mm, HN H: 3.05 mm
Washer
Material: Polyamide66, Head/Drive Type: Flat washer, size: M4, W0 A: 8.82 mm, W0 B: 4.39 mm, W0 T: 0.8 mm
Description
Features
- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / Nylon. Type: Pan Cross Head Bolts. Length: 40mm. Diameter: 4mm. Pitch: 0.7mm. Head diameter: 7.8mm. Head height: 3mm. SKU: 507.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases.
- The material is durable and lightweight, giving it a great strength-to-weight ratio.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties.
- Secure and robust tightening achieved with a crosshead screwdriver. Also known as cross-recess pan screws, pan head machine screws.
Product Summary
Nylon is strong and offers high wear and impact resistance. Nylon is one of the most widely used plastics in the world. Strength and wear resistance vary by grade. It has corrosion, chemical and electrical resistance. Tough and lightweight, nylon fasteners offer excellent electrical insulation properties and are non-corrosive and non-magnetic. An alternative 50% glass filled nylon version is also available.
