Features:

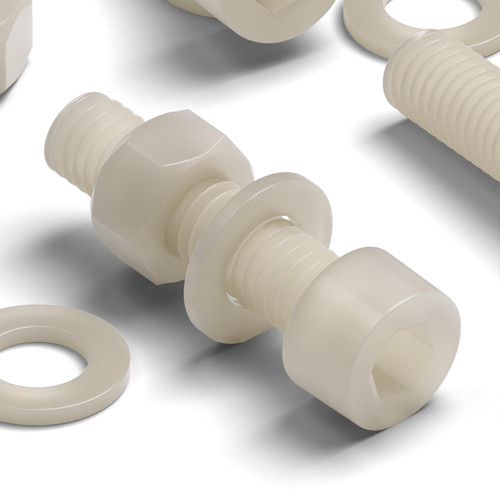

- 50x Bolts, 50x Nuts, 50x Washers. Colour: Natural. Material: PA 66 / Nylon. Type: Socket Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. Head diameter: 8.5mm. Head height: 4.9mm. Hex key: 4mm. SKU: 581.
- Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties.
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases.
- Socket head bolts are tightened and loosened with a hex key. Also known as socket cap screws, hex socket screws.
Product Summary:
Nylon is strong and offers high wear and impact resistance. Tough and lightweight, nylon socket head fasteners offer excellent electrical insulation properties and are non-corrosive and non-magnetic. Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases. Prolonged moisture exposure can affect its strength and dimensions.
| Core Technical Details | |
|---|---|
| Product Type | Socket Head Bolts |
| Size (mm) | M5 x 20mm |
| Material | Nylon / Polyamide 66 |
| Colour | Natural |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 5.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 5 mm (W) |
| Thickness / Depth -mm | 5 mm (D) |
| Pitch - mm | 0.8 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.197 |
| Thickness / Depth -inches | 0.197 |
| Pitch - inches | 0.0315 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 — Material Datasheet |
| Product Data Sheet | Nylon PA66 — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Socket-Head.png |
| Bolt Dimensions | Head/Drive Type: Socket Hex Head Bolt, size: M5 x 20, D: 5 mm, Pitch: 0.8 mm, L: 20 mm, HD: 8.5 mm, HH: 4.91 mm, HS: 4.06 mm |
| Nut Dimensions | Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M5, N (mm): M5, HN B: 7.89 mm, HN H: 4.55 mm |
| Washer Dimensions | Material: Polyamide66, Head/Drive Type: Flat washer, size: M5, W0 A: 9.82 mm, W0 B: 5.39 mm, W0 T: 1 mm |
| Width -mm | 5 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 5 mm (D) |
| Diameter -mm | 5.00 |
