Nylon is one of the most widely used plastics in the world. All grades maintain great strength and offer extremely good wear resistance.

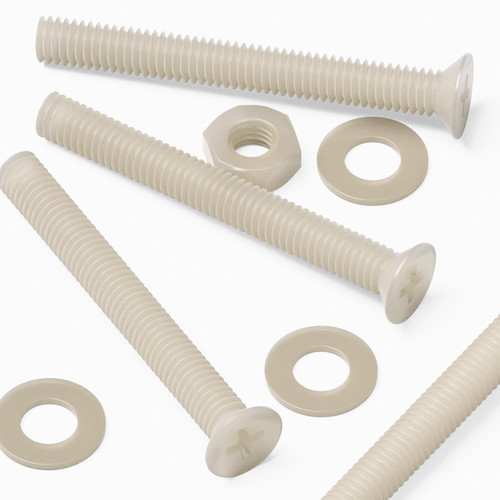

50x Bolts, 50x Washers, 50x Nuts. Nylon bolts are non-magnetic
Made from tough, lightweight nylon, these fasteners offer excellent electrical insulating and non-corrosive properties
An alternative is available in 50% glass-filled, further extending its mechanical properties.
Please see the technical image illustration for size references. All measurements are in millimetres/millimeters.
Product Details:
- Size_Reference: M3 x 25mm.
- Colour_Reference: Natural.
- Material_Reference: Nylon / Polyamide 66.
- Type_Reference: Countersunk Cross Head Bolts.
- Quantity_Reference: 50.
- Pitch_(mm): 0.5.
Dimensions (L x W x D mm):
25 x 3 x 3.Additional Specifications:
- Washer_Dimension: Stock Code: CR06622PA66 , Material: Polyamide66 , Material Reference: PA66/W0 , Head/Drive Type: Flat washer , Overall Size: M3 , W0 A: 6.82 , W0 B: 3.29 , W0 T: 0.5 ,.
- Nut_Dimension: Stock Code: CR06435 PA66 , Material: Polyamide66 , Material Reference: PA66/HN , Head/Drive Type: Hexagon Nut , Overall Size: M3 , N (mm): M3 , HN B: 5.41 , HN H: 2.28 ,.
- Bolt_Dimension: Stock Code: CR04624PA66 , Material: Polyamide66 , Material Reference: PA66/I0 , Head/Drive Type: Cross Countersunk Head Bolt , Overall Size: M3 x 25 , Metric Size: M3 , D: 3 , Pitch: 0.5 , L: 25 , HD: 5.35 , HH: 1.65 ,.
