Features:

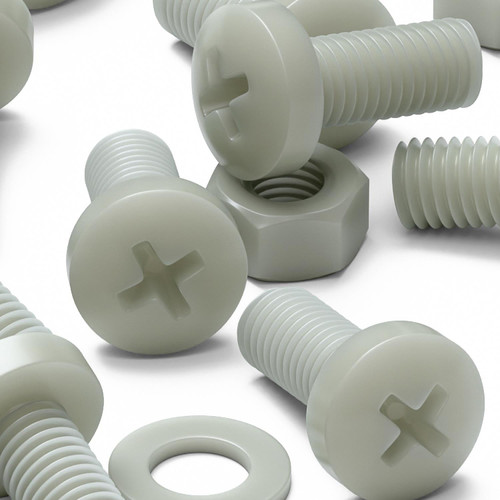

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 632.
- Our 50% glass fibre (GF) filled material has superior tensile, flexural and impact strength, enabling it to be used in load bearing applications.
- Glass fiber reinforcement was introduced to PA66 to improve its mechanical properties and thermal stability, enabling its use in demanding applications.
- The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Cross drive design for screwdriver installation and wide underside for even load distribution.
Product Summary:
While the melting point remains mostly unchanged, PA66+GF’s heat deflection temperature is superior to that of PA66, meaning the composite can withstand higher temperatures before it begins to deform under load. The composite demonstrates reduced moisture absorption, a significant improvement over PA66’s susceptibility to moisture. Common applications include automotive components, industrial machinery, and consumer goods requiring high strength and thermal resistance. Pan head crosshead bolts and screws are also known as plastic bolts, plastic screws, plastic bolt and plastic screw.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M8 x 20mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 8.00 |
| Length - mm | 20 mm (L) |
| Width -mm | 8 mm (W) |
| Thickness / Depth -mm | 8 mm (D) |
| Pitch - mm | 1.25 |
| Dimensions - Inches Conversion | |
| Length -inches | 0.787 |
| Width -inches | 0.315 |
| Thickness / Depth -inches | 0.315 |
| Pitch - inches | 0.049 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 50% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 50% Glass Fibre — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03038PA+GF Head/Drive Type: Cross Pan Head Bolt size: M8 x 20 D: 8 mm Pitch: 1.25 mm L: 20 mm HD: 15.79 mm HH: 5.85 mm |
| Nut Dimensions | Stock Code: CR06372PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M8 N (mm): M8 HN B: 12.87 mm HN H: 6.62 mm |
| Washer Dimensions | Stock Code: CR06528PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/W0 Head/Drive Type: Flat Washer size: M8 W0 A: 15.78 mm W0 B: 8.51 mm W0 T: 1.6 mm |
| Width -mm | 8 mm (W) |
| Length - mm | 20 mm (L) |
| Thickness / Depth -mm | 8 mm (D) |
| Diameter -mm | 8.00 |
