Features:

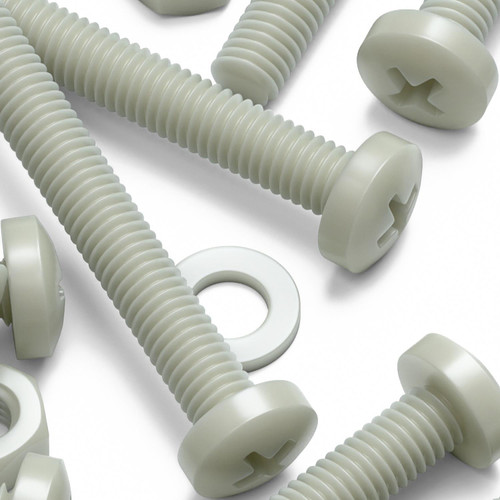

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Pan Cross Head Bolts. Length: 60 mm. Diameter: 6 mm. Pitch: 1 mm. SKU: 504.
- Our 50% glass fibre (GF) filled material has superior tensile, flexural and impact strength, enabling it to be used in load bearing applications.
- Glass fibre reinforcement was introduced to PA66 to improve its mechanical properties and thermal stability, enabling use in demanding applications.
- The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Cross drive design for screwdriver installation and wide pan head underside for even load distribution.
Product Summary:
PA66+GF pan cross head bolts, nuts and washers are made from 50% glass fibre reinforced nylon for improved stiffness, strength and heat resistance compared with standard PA66. The composite has reduced moisture absorption and is suitable for demanding plastic fastening applications in automotive, industrial machinery and equipment assemblies. Pan cross head bolts and screws are also known as plastic bolts, plastic screws, machine screws and crosshead screws.
| Core Technical Details | |
|---|---|
| Product Type | Pan Cross Head Bolts |
| Size (mm) | M6 x 60mm |
| Material | Nylon PA 66 / 50% Glass Fibre Reinforced |
| Colour | Natural |
| Quantity | 50 |
| Dimensions - mm | |
| Diameter -mm | 6.00 |
| Length - mm | 60 mm (L) |
| Width -mm | 6 mm (W) |
| Thickness / Depth -mm | 6 mm (D) |
| Pitch - mm | 1 |
| Dimensions - Inches Conversion | |
| Length -inches | 2.362 |
| Width -inches | 0.236 |
| Thickness / Depth -inches | 0.236 |
| Pitch - inches | 0.039 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | Nylon PA66 50% Glass Fibre — Material Datasheet |
| Product Data Sheet | Nylon PA66 50% Glass Fibre — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Cross-Pan-Head.png |
| Bolt Dimensions | Stock Code: CR03036PA+GF Head/Drive Type: Cross Pan Head Bolt size: M6 x 60 D: 6 mm Pitch: 1 mm L: 60 mm HD: 11.79 mm HH: 4.45 mm |
| Nut Dimensions | Stock Code: CR06371PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M6 N (mm): M6 HN B: 9.89 mm HN H: 5.05 mm |
| Washer Dimensions | Stock Code: CR06527PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/W0 Head/Drive Type: Flat Washer size: M6 W0 A: 11.78 mm W0 B: 6.51 mm W0 T: 1.6 mm |
| Width -mm | 6 mm (W) |
| Length - mm | 60 mm (L) |
| Thickness / Depth -mm | 6 mm (D) |
| Diameter -mm | 6.00 |
