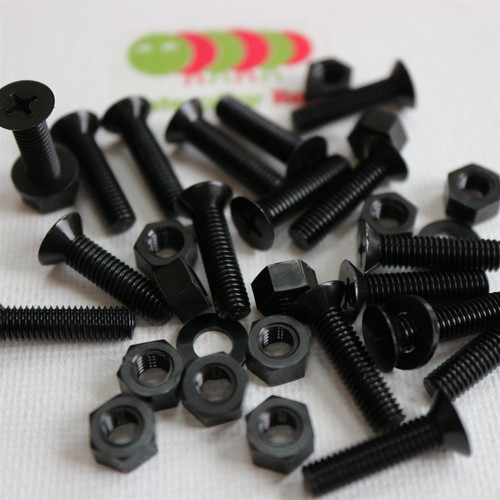

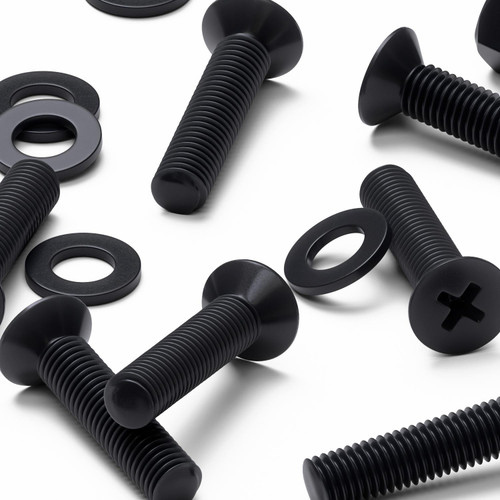

50x Black Nylon Countersunk Cross Machine Screws M5 x 20 mm, Nuts & Washers
A closer look.
SKU code 554
In stock
Price per packDelivery
Delivery to the USA & Canada, import duties paid by us
Tracked post 5-10 days or express courier 2-4 days. Price at checkout.
Nothing more to pay on delivery. No US sales tax.
Delivery details
UK
- Free delivery Every UK order Free
- Faster options Shown at checkout, before you pay
Also Isle of Man, Jersey and Guernsey, free delivery included.
Europe
- Tracked post 5-10 days at checkout
- Express courier 2-4 days at checkout
Import charges paid by us, at your country's VAT rate - nothing to pay on delivery.
USA & Canada
- Tracked post 5-10 days at checkout
- Express courier 2-4 days at checkout
USA: import duties and tariffs paid by us, no US sales tax. Canada: import duties and customs paid by us.
Rest of the world
- Tracked post or express courier - times shown at checkout
Import charges paid by us. For large or special orders, request a quote.
Times count from dispatch; we dispatch on UK working days. Full delivery page
Check the fit. Technical specification
- Product type
- Countersunk Cross Head Bolts
- Size (mm)
- M5 x 20mm
- Thread
- M5
- Material
- Nylon / Polyamide 66
- Colour
- Black
- Pack size
- 50
- Diameter
- 5.00 mm
- Length
- 20 mm
- Width
- 5 mm
- Thickness / depth
- 5 mm
- Pitch
- 0.8 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Buying in bulk? Get a trade price
Dimensions & documents
- Product Safety InformationPDF document
- Nylon PA66 — Material DatasheetPDF document
- Nylon PA66 — Screws & Bolts DatasheetPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Head/Drive Type: Cross Countersunk Head Bolt, size: M5 x 20, D: 5 mm, Pitch: 0.8 mm, L: 20 mm, HD: 9.12 mm, HH: 2.7 mm
Nut
Material: Polyamide66, Head/Drive Type: Hexagon Nut, size: M5, N (mm): M5, HN B: 7.89 mm, HN H: 4.55 mm
Washer
Material: Polyamide66, Head/Drive Type: Flat washer, size: M5, W0 A: 9.82 mm, W0 B: 5.39 mm, W0 T: 1 mm
Description
Features
- 50x Bolts, 50x Nuts, 50x Washers. Pantone 3C Black. Material: PA 66 / Nylon. Type: Countersunk Cross Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. Head diameter: 9.1mm. Head height: 2.7mm. SKU: 554.
- Nylon is exceptionally strong and exhibits high tensile strength, as well as high wear and impact resistance.
- Made from tough, lightweight nylon, these fasteners offer a good strength-to-weight ratio.
- Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases, but strong acids and oxidising agents can degrade it.
- Equipped with a cross head for fastening with a cross head screwdriver. The tapered, flat-topped head sits flush with the surface for a smooth finish. Also known as cross-recess countersunk screws, flat head screws.
Product Summary
Made from tough, lightweight nylon, these countersunk cross head bolts offer high tensile strength, wear resistance and impact resistance. Nylon is resistant to most organic solvents, fuels, oils, weak acids and bases, but strong acids and oxidising agents can degrade it. The countersunk head sits flush with the surface when fitted in a countersunk hole, and the cross head can be tightened with a cross head screwdriver. These fasteners are also known as plastic bolts or plastic screws.
