Features:

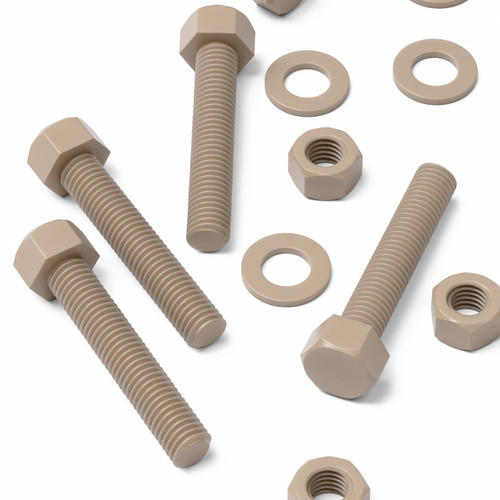

- 5x Bolts, 5x Nuts, 5x Washers. Colour: natural. Material: PEEK. Type: Hex Head Bolts. Length: 65mm. Diameter: 12mm. Pitch: 1.75mm. Across flats: 18mm. Head height: 7.5mm. SKU: 578.
- PEEK demonstrates excellent chemical resistance to most acids, bases, and organic solvents. Avoid concentrated sulphuric acid.
- PEEK maintains its shape and mechanical properties under varying temperatures, demonstrating high dimensional stability.
- PEEK can be used continuously at temperatures up to 250 °C and has a melting point of 343 °C.
- The hex head sits above the surface for access during fitting, removal and refitting. Also known as hex bolts, hexagon head screws.
Product Summary:
PEEK is a strong, stiff engineering plastic with excellent chemical resistance, high tensile strength, impact resistance and dimensional stability. It offers hydrolysis resistance to steam, water and seawater and maintains stiffness at high temperatures. PEEK can be used continuously at temperatures up to 250 °C. It also provides electrical insulation at elevated temperatures. This hex head bolt kit is supplied with matching nuts and washers.
| Core Technical Details | |
|---|---|
| Product Type | Hex Head Bolts |
| Size (mm) | M12 x 65mm |
| Material | PEEK / Polyether ether ketone |
| Colour | Natural |
| Quantity | 5 |
| Dimensions - mm | |
| Diameter -mm | 12.00 |
| Length - mm | 65 mm (L) |
| Width -mm | 12 mm (W) |
| Thickness / Depth -mm | 12 mm (D) |
| Pitch - mm | 1.75 |
| Dimensions - Inches Conversion | |
| Length -inches | 2.559 |
| Width -inches | 0.472 |
| Thickness / Depth -inches | 0.472 |
| Pitch - inches | 0.0689 |
| Product Download Sheets | |
| Safety Data Sheet | Conformity Safety |
| Material Data Sheet | PEEK — Material Datasheet |
| Product Data Sheet | PEEK — Screws & Bolts Datasheet |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Hexagon-Head.png |
| Bolt Dimensions | Head/Drive Type: Hexagon Head Bolt, size: M12 x 65, D: 12 mm, Pitch: 1.75 mm, L: 65 mm, HD: 17.78 mm, HH: 7.5 mm |
| Nut Dimensions | Material: Polyether ether ketone, Head/Drive Type: Hexagon Nut, size: M12, N (mm): M12, HN B: 17.87 mm, HN H: 10.59 mm |
| Washer Dimensions | Material: Polyether ether ketone, Head/Drive Type: Flat washer, size: M12, W0 A: 23.74 mm, W0 B: 13.14 mm, W0 T: 2.5 mm |
| Width -mm | 12 mm (W) |
| Length - mm | 65 mm (L) |
| Thickness / Depth -mm | 12 mm (D) |
| Diameter -mm | 12.00 |
