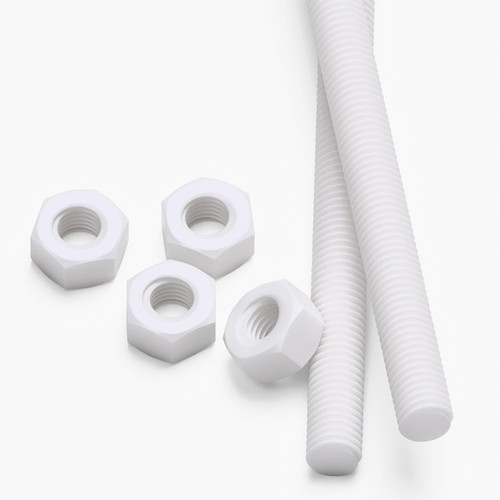

2x White PTFE M8 x 500 mm Threaded Rods, Plastic Studding + 4 Nuts

2x White PTFE M8 x 500 mm Threaded Rods, Plastic Studding + 4 Nuts

The details, at a glance.

  • Thread M8
  • Length 500 mm
  • Material PTFE / Polytetrafluoroethylene
  • Colour White
  • Pack size 2
Prices
Price per pack £17.99 ex VAT · £21.59 inc VAT
Current Stock:

    Adding to basket… Added to your basket.
    Request a quote

    In stock

    Need another length?

    200 mm300 mm500 mm1000 mm

    Dimensions & documents

    PTFE — Material Datasheet PTFE — Screws & Bolts Datasheet Conformity Safety Technical drawing

    Check the fit. Technical specification

    Product type
    Threaded Rods
    Size (mm)
    M8 x 500mm
    Thread
    M8
    Material
    PTFE / Polytetrafluoroethylene
    Colour
    White
    Pack size
    2
    Diameter
    8.00 mm
    Length
    500 mm
    Width
    8 mm
    Thickness / depth
    8 mm
    Pitch
    1.25 mm

    Bolt, nut and washer dimensions

    Bolt

    Material: Polytetrafluoroethylene, Head/Drive Type: Fully Threaded Rod, size: M8 x 500, D: 8 mm, Pitch: 1.25 mm, L: 500 mm

    Description

    Features

    • Pack of 2 threaded rods. Colour: White. Material: PTFE / Polytetrafluoroethylene. Length: 500mm. Diameter: 8mm. Pitch: 1.25mm. 4 nuts included (2 per rod). SKU: 958.
    • M8 PTFE gives a larger plastic thread for light alignment bars, spacer runs and adjustable positioning.
    • Non-conductive PTFE can help keep the fixing path separate from nearby conductive parts in suitable builds.
    • The 500 mm rod can be used as a longer threaded section or cut into custom lengths.
    • Use for light non-metallic spacing and alignment; confirm thread engagement and material suitability before fitting. Also known as studding, allthread, threaded bar.

    Product Summary

    These M8 x 500 mm white PTFE threaded rods are supplied as two larger fully threaded plastic bars. M8 gives more handling area than smaller PTFE sizes and is useful for light alignment bars, adjustable spacer runs and non-metallic threaded sections where a smooth plastic thread is preferred. PTFE offers low friction, electrical insulation and broad chemical compatibility in suitable conditions. PTFE is relatively soft and can deform under sustained loads, so it should be used where this behaviour is acceptable. Cut carefully if shorter sections are required and use compatible M8 nuts without excessive torque. Supplied with 4 nuts.
