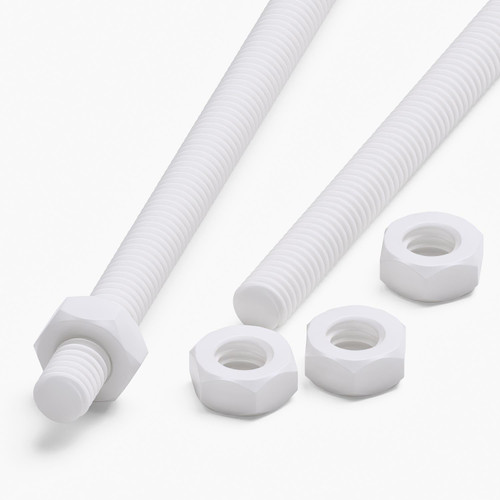

Features:
- 2x fully threaded plastic rods. Material: PTFE / polytetrafluoroethylene. White. Size: M4 x 500 mm. Diameter: 4 mm. Pitch: 0.7 mm. SKU: 952.
- M4 gives a practical small thread for stand-offs, spacer stacks and light non-metallic fixing work.
- PTFE’s low-friction surface can help when nuts need to be positioned or adjusted along the rod.
- Fully threaded from end to end, so the whole 500 mm length remains usable after cutting to size.
- Use with compatible M4 nuts for light spacing, alignment and enclosure work; check suitability before final fitting.
Product Summary:
These M4 x 500 mm white PTFE threaded rods are supplied as two fully threaded plastic bars for light-duty metric spacing, stand-offs and non-metallic fixing. M4 gives a slightly larger and easier-to-handle thread than M3 while staying compact enough for small assemblies. PTFE provides a low-friction, electrically insulating plastic thread with broad chemical compatibility in suitable environments. It is softer than metal, so it should be cut, clamped and tightened with care. The 500 mm length can be used for longer spacer runs or cut into shorter matched sections.
| Core Technical Details | |
|---|---|
| Product Type | Threaded Rods |
| Size (mm) | M4 x 500mm |
| Material | PTFE / Polytetrafluoroethylene |
| Colour | White |
| Quantity | 2 |
| Dimensions - mm | |
| Diameter -mm | 4.00 |
| Length - mm | 500 mm (L) |
| Width -mm | 4 mm (W) |
| Thickness / Depth -mm | 4 mm (D) |
| Pitch - mm | 0.7 |
| Dimensions - Inches Conversion | |
| Length -inches | 19.685 |
| Width -inches | 0.157 |
| Thickness / Depth -inches | 0.157 |
| Pitch - inches | 0.028 |
| Product Download Sheets | |
| Material Data Sheet | PTFE — Material Datasheet |
| Product Data Sheet | PTFE — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Threaded-Rod-Stud.jpg |
| Bolt Dimensions | Stock Code: CR-Rod-07001-PTFE Material: Polytetrafluoroethylene Material Reference: PTFE Head/Drive Type: Fully Threaded Rod size: M4 x 500 D: 4 mm Pitch: 0.7 mm L: 500 mm |
| Width -mm | 4 mm (W) |
| Length - mm | 500 mm (L) |
| Thickness / Depth -mm | 4 mm (D) |
| Diameter -mm | 4.00 |
