Features:
- 2x fully threaded plastic rods. PTFE / polytetrafluoroethylene. White. M12 x 1000 mm. Pitch: 1.75 mm. SKU: 1003.
- PTFE gives a smooth, chemically compatible plastic thread for suitable M12 spacing and alignment applications.
- Electrically insulating and non-magnetic, useful where metal threaded rods are not the preferred material.
- Fully threaded end to end, so trimmed sections still give usable thread engagement.
- Best for light-duty stand-offs, separators, tie points and non-metallic assemblies after checking service conditions.
Product Summary:

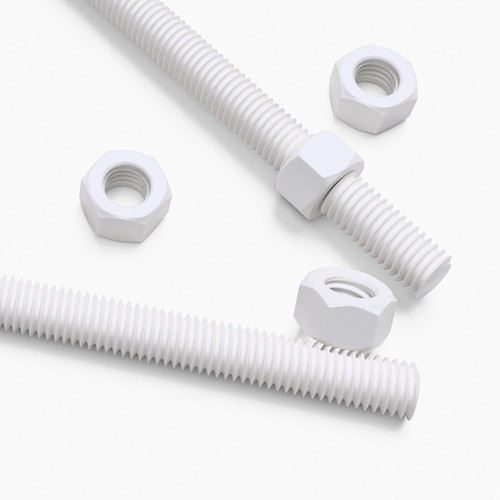

These M12 x 1000 mm white PTFE threaded rods give a larger plastic thread for extended spacers, alignment bars and light-duty assemblies that need a non-metallic fastener. PTFE brings low surface friction, electrical insulating behaviour and broad compatibility with many chemicals, while remaining softer and more flexible than steel. The rods are fully threaded end to end, so the length can be trimmed for custom stand-off or tie-rod layouts. Best used where the material choice matters more than mechanical strength; check nut fit, tightening force and service conditions.
| Core Technical Details | |
|---|---|
| Product Type | Threaded Rods |
| Size (mm) | M12 x 1000mm |
| Material | PTFE / Polytetrafluoroethylene |
| Colour | White |
| Quantity | 2 |
| Dimensions - mm | |
| Diameter -mm | 12.00 |
| Length - mm | 1000 mm (L) |
| Width -mm | 12 mm (W) |
| Thickness / Depth -mm | 12 mm (D) |
| Pitch - mm | 1.75 |
| Dimensions - Inches Conversion | |
| Length -inches | 39.37 |
| Width -inches | 0.472 |
| Thickness / Depth -inches | 0.472 |
| Pitch - inches | 0.069 |
| Product Download Sheets | |
| Material Data Sheet | PTFE — Material Datasheet |
| Product Data Sheet | PTFE — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Threaded-Rod-Stud.jpg |
| Bolt Dimensions | Stock Code: CR-Rod-07052-PTFE Material: Polytetrafluoroethylene Material Reference: PTFE Head/Drive Type: Fully Threaded Rod size: M12 x 1000 D: 12 mm Pitch: 1.75 mm L: 1000 mm |
| Width -mm | 12 mm (W) |
| Length - mm | 1000 mm (L) |
| Thickness / Depth -mm | 12 mm (D) |
| Diameter -mm | 12.00 |
