Stock code 996

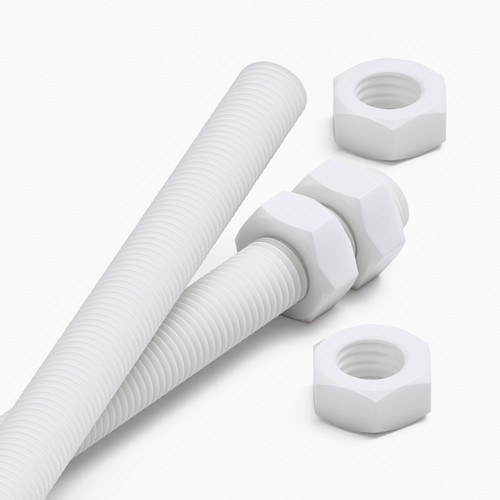

2x White Polypropylene (PP) M16 x 500 mm Threaded Rods, Studding + 4 Nuts
A closer look.
In stock
Check the fit. Technical specification
- Product type
- Threaded Rods
- Size (mm)
- M16 x 500mm
- Thread
- M16
- Material
- PP / Polypropylene
- Colour
- White
- Pack size
- 2
- Diameter
- 16.00 mm
- Length
- 500 mm
- Width
- 16 mm
- Thickness / depth
- 16 mm
- Pitch
- 2 mm
Inch values are converted from millimetres. Fractions are approximate, rounded to the nearest 1/16 in. Thread diameter and pitch are not shown as fractions.
Dimensions & documents
- Polypropylene (PP) — Material DatasheetPDF document
- Polypropylene (PP) — Screws & Bolts DatasheetPDF document
- Conformity SafetyPDF document
- Technical drawingDrawing, image
Bolt, nut and washer dimensions
Bolt
Material: Polypropylene, Head/Drive Type: Fully Threaded Rod, size: M16 x 500, D: 16 mm, Pitch: 2.0 mm, L: 500 mm
Description
Features
- Pack of 2 threaded rods. Colour: White. Material: PP / Polypropylene. Length: 500mm. Diameter: 16mm. Pitch: 2mm. 4 nuts included (2 per rod). SKU: 996.
- Polypropylene is lightweight with very low moisture absorption, useful for larger spacer bars, panel separation and custom cut threaded lengths.
- Electrically insulating plastic body with resistance to many aqueous acids and alkalis where the material grade suits the environment.
- Fully threaded 500 mm length accepts compatible M16 nuts along the rod and can be cut carefully to suit the job.
- Use for light-duty spacing, alignment and positioning; avoid over-tightening plastic threads and check suitability before use. Also known as studding, allthread, threaded bar.
Product Summary
These white PP M16 x 500 mm threaded rods are supplied as 2 fully threaded polypropylene plastic rods. Polypropylene is a lightweight plastic with very low moisture absorption and useful electrical insulation, with resistance to many aqueous acids and alkalis when the grade suits the environment. This 500 mm format is suited to larger spacer bars, panel separation and custom cut threaded lengths, especially where a simple non-metallic threaded bar is preferred over a metal fixing. The continuous thread accepts compatible M16 nuts along the rod and can be cut carefully into shorter sections. PP is inherently flexible, so check thread fit, tightening force and application suitability before use. Supplied with 4 nuts.
