Features:

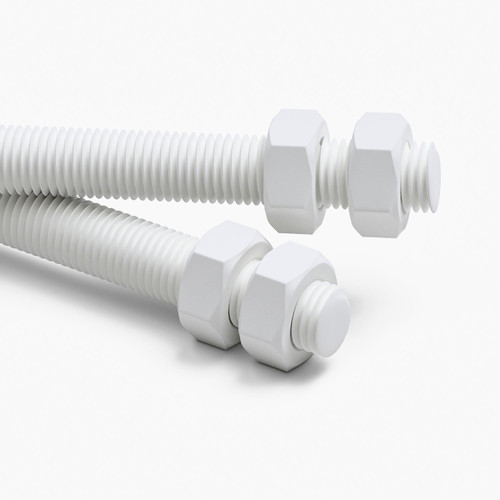

- Pack of 2 white polypropylene (PP) threaded rods. M16 x 1000 mm. Diameter: 16 mm. Pitch: 2.0 mm. SKU: 1021.
- Largest PP thread in this set, giving a broad plastic threaded bar for large spacers and custom sections.
- Useful where low weight, low moisture uptake and electrical insulation are part of the material choice.
- Cut from the 1000 mm length into shorter M16 threaded sections where the application allows.
- Use only where the joint design suits polypropylene; check nut engagement, temperature and chemical exposure.
Product Summary:
These white polypropylene (PP) M16 x 1000 mm threaded rods are the largest PP size in this batch, supplied as 2 fully threaded plastic bars. The broad M16 thread suits large plastic spacers, separation pieces and custom non-metallic threaded sections where PP is chosen for low weight, low moisture absorption, electrical insulation and resistance to many acids and alkalis. PP is less stiff than nylon or steel, so this rod should be used only where the assembly design and service conditions suit a plastic threaded component.
| Core Technical Details | |
|---|---|
| Product Type | Threaded Rods |
| Size (mm) | M16 x 1000mm |
| Material | PP / Polypropylene |
| Colour | White |
| Quantity | 2 |
| Dimensions - mm | |
| Diameter -mm | 16.00 |
| Length - mm | 1000 mm (L) |
| Width -mm | 16 mm (W) |
| Thickness / Depth -mm | 16 mm (D) |
| Pitch - mm | 2 |
| Dimensions - Inches Conversion | |
| Length -inches | 39.37 |
| Width -inches | 0.63 |
| Thickness / Depth -inches | 0.63 |
| Pitch - inches | 0.079 |
| Product Download Sheets | |
| Material Data Sheet | Polypropylene (PP) — Material Datasheet |
| Product Data Sheet | Polypropylene (PP) — Screws & Bolts Datasheet |
| Safety Data Sheet | Conformity Safety |
| Type | |
|---|---|
| Technical Drawing | https://caterpillar-red.com/content/Technical_Drawings/A-Technical-Drawing-Threaded-Rod-Stud.jpg |
| Bolt Dimensions | Stock Code: CR-Rod-07070-PP Material: Polypropylene Material Reference: PP Head/Drive Type: Fully Threaded Rod size: M16 x 1000 D: 16 mm Pitch: 2.0 mm L: 1000 mm |
| Width -mm | 16 mm (W) |
| Length - mm | 1000 mm (L) |
| Thickness / Depth -mm | 16 mm (D) |
| Diameter -mm | 16.00 |
